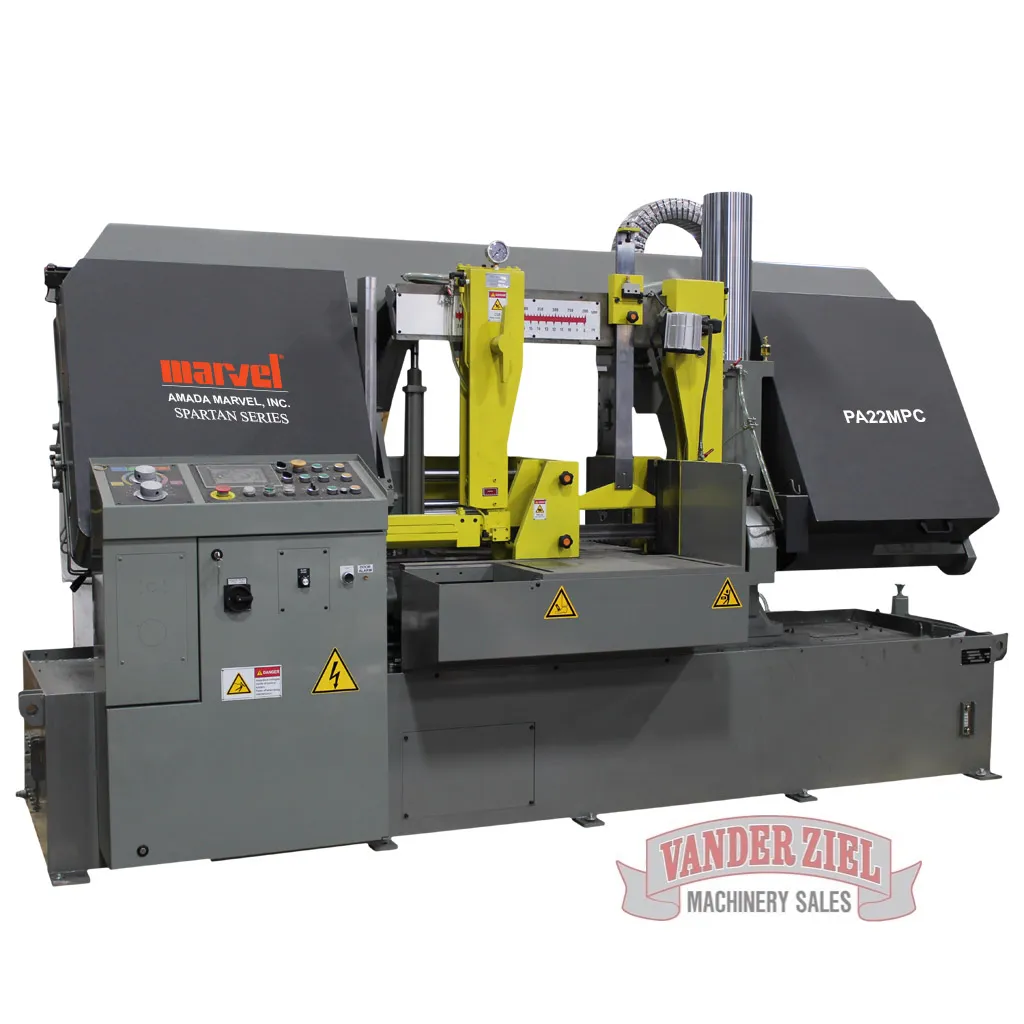

Marvel Spartan 22" x 24.5" Automatic Horizontal Saw with Programmable Controls, Model PA22-MPC - NEW
Marvel Spartan 22" x 24.5" Automatic Horizontal Saw with Programmable Controls, Model PA22-MPC - NEW
SKU # 2320004
STANDARD SPARTAN MODEL PA22-MPC HEAVY DUTY AUTOMATIC, HORIZONTAL POST STYLE, METAL CUTTING BANDSAW WITH 10 H.P., 2" BLADE, AND AMADA MARVEL PROGRAMMABLE CONTROL
Capacity 22" x 24.5", 22" Round. 4" Minimum Clamp.
Blade 2" x .063" x 21' 8"
Blade Tension Hydraulically controlled to (40,000 psi). Includes Motion Detector switch to shut down machine if the blade should stall or break.
Speed Range 60 - 300 FPM infinitely variable through a frequency inverter drive and heavy-duty worm gear transmission. The broad speed range allows for optimum cutting of a large spectrum of materials. Read out at the operator's touch screen assures accurate speed setting.
Feed Force Hydraulic feed pressure 0 - 300 lbs. infinitely variable. Feed rate and pressure can be controlled independently for fast, accurate cutting. Setup is made easy through the color coded dial allowing the operator to select the best setting for the type of material being cut.
Hydraulic Bar Feed For automatic cutting, shuttle stroke is 16", multi-cycle feature provides for automatic cutting of pieces from 0 to 400".
Motors Blade Drive: 10 H.P., Hydraulic Pump: 3 H.P., Coolant Pump Motor: 0.25 H.P.
EPC Programmable Control Conveniently located on the operator's control panel, this touch screen control allows the operator to program and store up to nine jobs. Inputs include part lengths from 0 to 400" and number of pieces to be cut. The blade speed is displayed on and set using the touch screen, but is not stored in memory. The automatic piece counter stops each job when the pre-set number of cuts has been made. The control provides the option of running up to 20 jobs consecutively.
Out-of-Stock Switch The machine will shut off automatically when material is no longer present in the rear vise jaws.
Blade Guides Hydraulically controlled solid carbide guides are actuated when the machine's hydraulic system is started to ensure rigid clamping for accurate cuts. Cast iron guide arms are manually positioned.
Automatic Chip Conveyor Electric drive auger-type automatic chip conveyor is a standard feature.
Chip Brush Powered from the main drive shaft of the saw, cleans chips from blade to improve cutting performance and blade life.
Fast Approach Work height is automatically set allowing the head to raise just enough to clear the work piece, reducing cycle time.
Work Light Standard feature, mounted directly over work area.
REF: 000117
Similar Machines
Browse All Equipment Listings
New
W.F. Wells

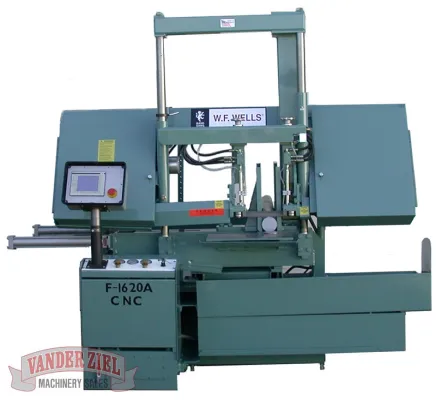

W.F. Wells 16" x 20" CNC Fully Automatic Horizontal Saw with Shuttle Type Barfeed, Model F-1620-A CNC - NEW
Asset #: 4020027N
$62,250
New
Ellis
VZMS HQ (Alto)
Ellis 9" x 10" Horizontal Saw, Model 1600 - NEW
Asset #: 16948N
$4,395
New
W.F. Wells

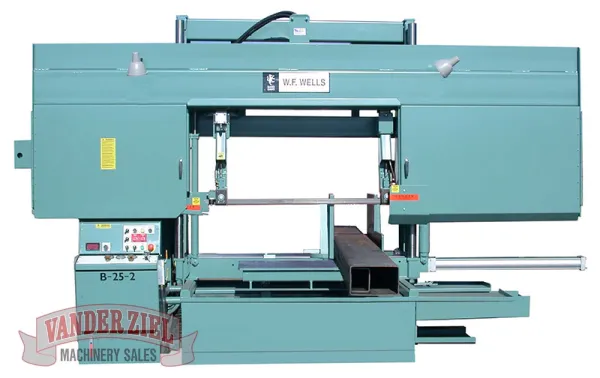

W.F. Wells 25" x 40" Semi-Automatic Horizontal Saw, Model B-25-2 - NEW
Asset #: 4020015N
$87,950
New
W.F. Wells

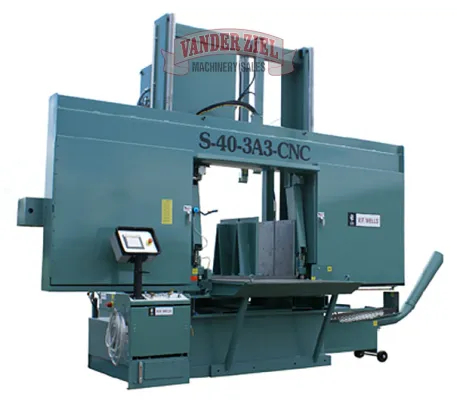

W.F. Wells 40" x 40" CNC Fully Auotmatic Horizontal Saw, Model S-40-3A3 CNC - NEW
