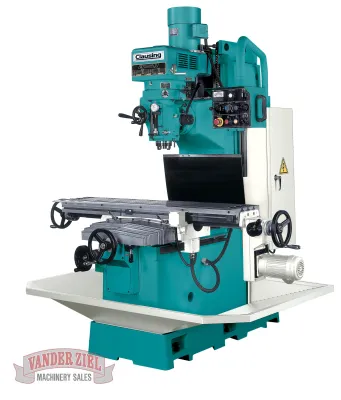

Clausing 4BVSCNC40 Bed Mill, 10" x 54" Table, 5 HP - NEW

Prices subject to change every 10 days due to economic changes please call us to verify the price!

SKU #0727000

Standard Features...

Powerful 5 Hp spindle drive motor

Mechanical variable speed drive with 2 speed ranges

Hardened and ground spindle with NT40 taper

Hardened and chromed quill with 5" travel

CP4 ABEC7 angular contact spindle bearings

C7 double nut X/Y/Z axes 1.26" diameter ballscrew

Hardened and ground table surface

Ground T-slots to provide accurate reference edge

Hardened and ground, square X/Y ways

Turcite B coating on saddle X/Y axes ways

Meehanite castings for superior rigidity and wear resistance

Stainless steel front Y axis way cover

Rubber Z axis and rear Y/Z axes way covers

Automatic lubrication with alarm with alarm

Transformer

Long arm halogen work light

Coolant system with pump

Tools, toolbox and parts

Models	4BVS40	SUP4BVS40
Table Size	10" x 54" (254x1371mm)	10" x 54" (254x1371mm)
Table Load Capacity	1,500 lbs. (680kg)	1,500 lbs. (680kg)
Number of T-Slots	3	3
T-Slot Width	.63" (16mm)	.63" (16mm)
T-Slot Center Distance	2.48" (63mm)	2.48" (63mm)
Table Ways (X Axis) Turcite B coated	Dovetail	Dovetail
Bed Ways (Y Axis) Turcite B coated	Square	Square
Column Ways (Z Axis)	Square	Square
TRAVELS
Longitudinal (X Axis)	29.8" (775mm)	30.51" (775mm)
Cross (Y Axis)	19.6" (445mm)	17.52" (445mm)
Vertical (Z Axis)	18.5" (500mm)	19.69" (500mm)
Quill Diameter	4.13" (105mm)	4.13" (105mm)
Quill Travel	5" (127mm)	5" (127mm)
Head Tilt (left or right)	90°	90°
Feedrate X & Y Axes	100 (in/min) (18-788mm/min)	.71-31 (in/min) (18-788mm/min)
Feedrate Z Axis	75 (in/min) (18-788mm/min)	.71-31 (in/min) (18-788mm/min)
X & Y Axes AC Motor with Brake	1/2 Hp	1/2 Hp
Z Axis AC Motor with Brake	1/2 Hp	1/2 Hp
SPINDLE
Motor	5 Hp (mechanical V.S.)	5 Hp (Inverter V.S.)
Spindle Speeds (Infinitely Variable)	70-4300 rpm	65-5160 rpm
No. of Speed Ranges	2	2
Low Gear Range	70-500 rpm	65-590 rpm
High Gear Range	570-4300 rpm	575-5160 rpm
Spindle Taper	NT 40	NT 40
Quill feed in/revolution (mm/revolution)	.0016/.003/.006 (0.04/0.08/0.015)	.0016/.003/.006 (0.04/0.08/0.015)
CONSTRUCTION
Height	78.74" (2000mm)	78.74" (2000mm)
Working Width	71.46" (1815mm)	71.46" (1815mm)
Working Depth	66.14" (1680mm)	66.14" (1680mm)
Width Across Column Ways	11.73" (298mm)	11.73" (298mm)
Length of Saddle on Bed	25.98" (600mm)	25.98" (600mm)
Width Across Bed Ways	16.53" (420mm)	16.53" (420mm)
Spindle Nose to Table	3.15"-22.83" (80-580mm)	3.15"-22.83"
Center of Spindle to Column ways	17.32" (440mm)	17.32" (440mm)
Floor to Table Surface	36.2" (920mm)	36.2" (920mm)
Table to Column Ways	3.15"-20.87" (80-530mm)	3.15"-20.87" (80-530mm)
Ball Screw Dia./Pitch	1.26"/.2" (32/5mm)	1.26"/.2" (32/5mm)
Ball Screw Class	C7	C7
Gross Weight (approximately)	4,400 lbs (2000kg)	4,400 lbs (2000kg)

Cnc Milling

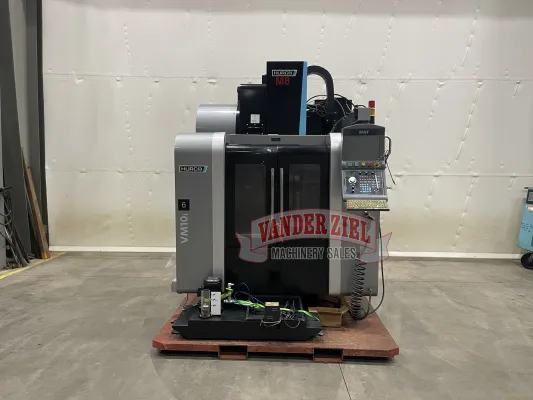

Hurco VM10i Vertical Machining Center, Model VM10 2013

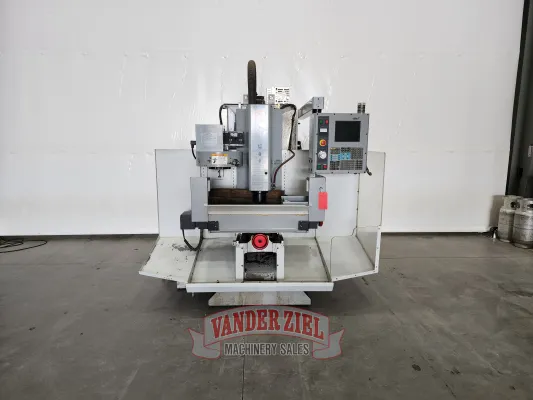

Haas TM-1 CNC Tool Room Mill, 2004

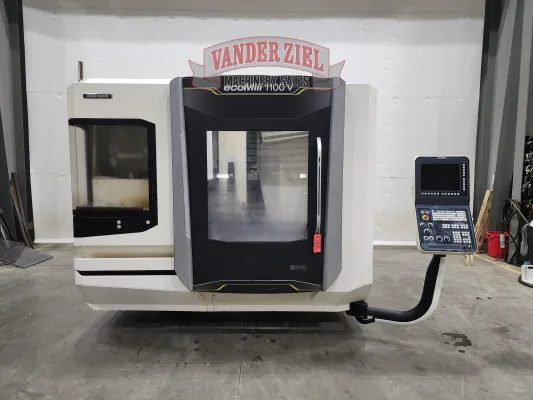

DMG Mori Vertical Milling Machine, 2016, Model ecoMill 1100V

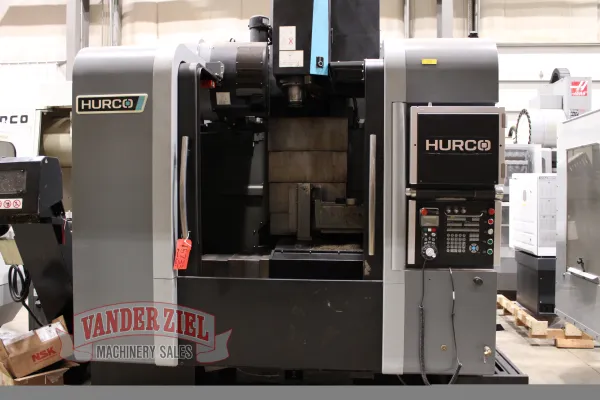

Hurco VMX30UHS 5-Axis Machining Center, 2014

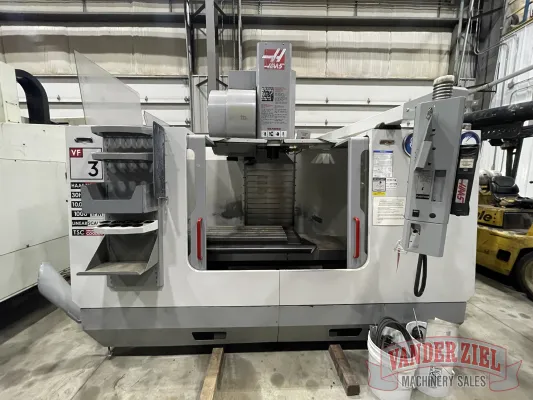

Haas VF-3 Machining Center - 2003

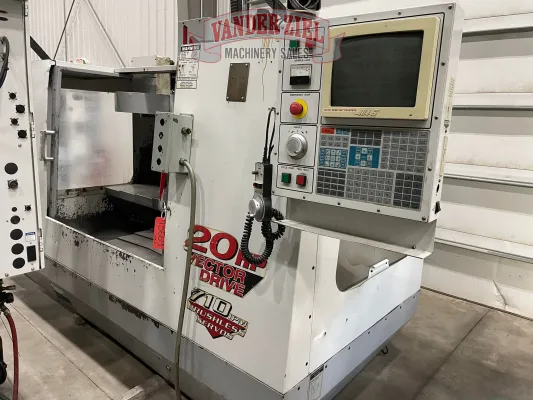

Haas VF-3 Vertical Machining Center, 20 HP

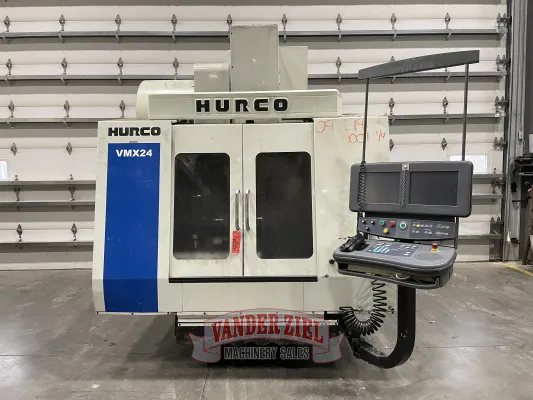

Hurco VMX24 CNC Machining Center - 2007

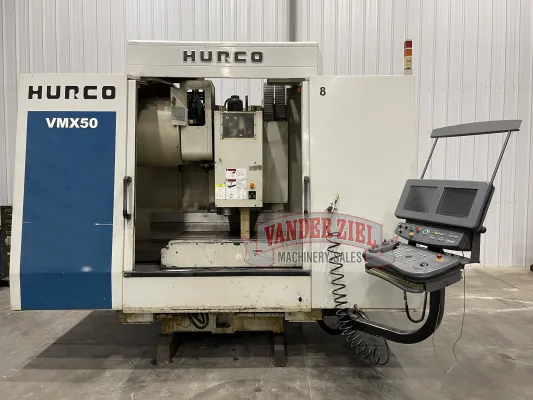

Hurco VMX50 CNC Vertical Machining Center, 2001

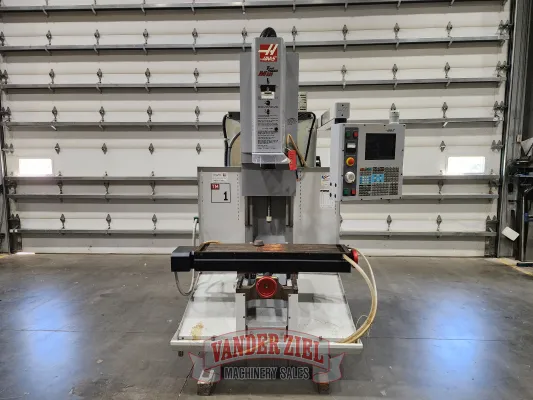

Haas TM-1 CNC Vertical Machining Center, 2005

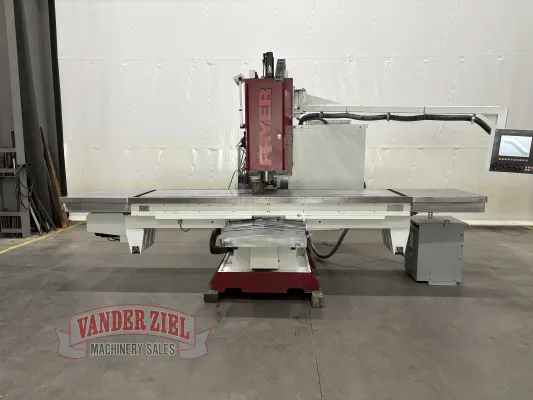

Fryer VB-100 CNC Vertical Machining Center - 2015

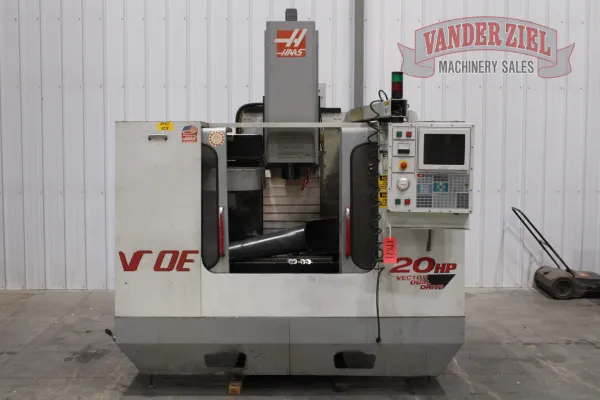

Haas VF-OE CNC Machining Center

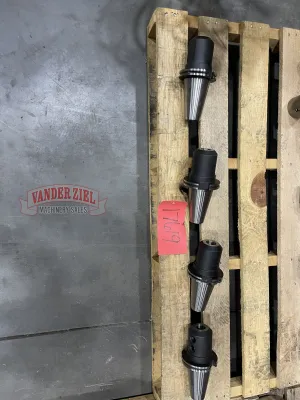

40 Taper Tooling

Clausing SUP8BVSCNC/MP Bed Mill, 17" x 62" Table, 7.5 HP - NEW

Doosan DNM 5700 CNC Vertical Machining Center - 2019

Mazak Machining Center

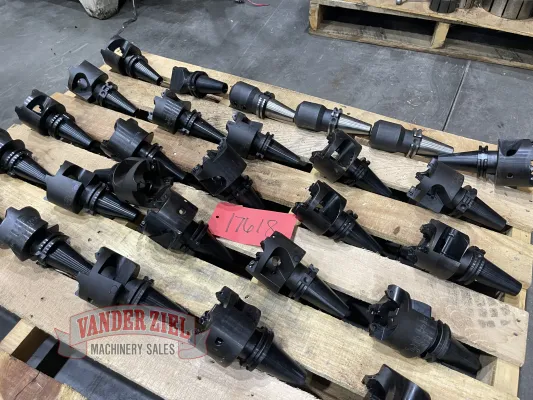

50 Taper Tooling

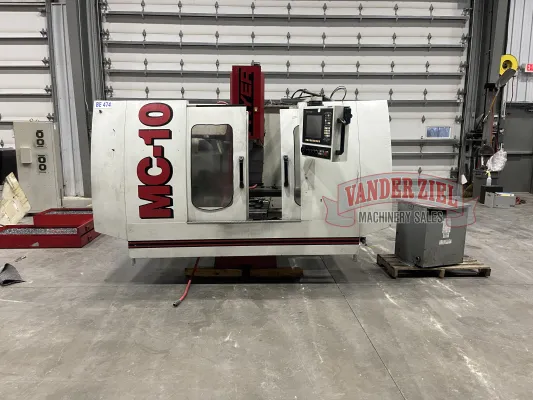

2006 Fryer MC-10E CNC Vertical Machining Center, Fryer 6000i Touch CNC Control
