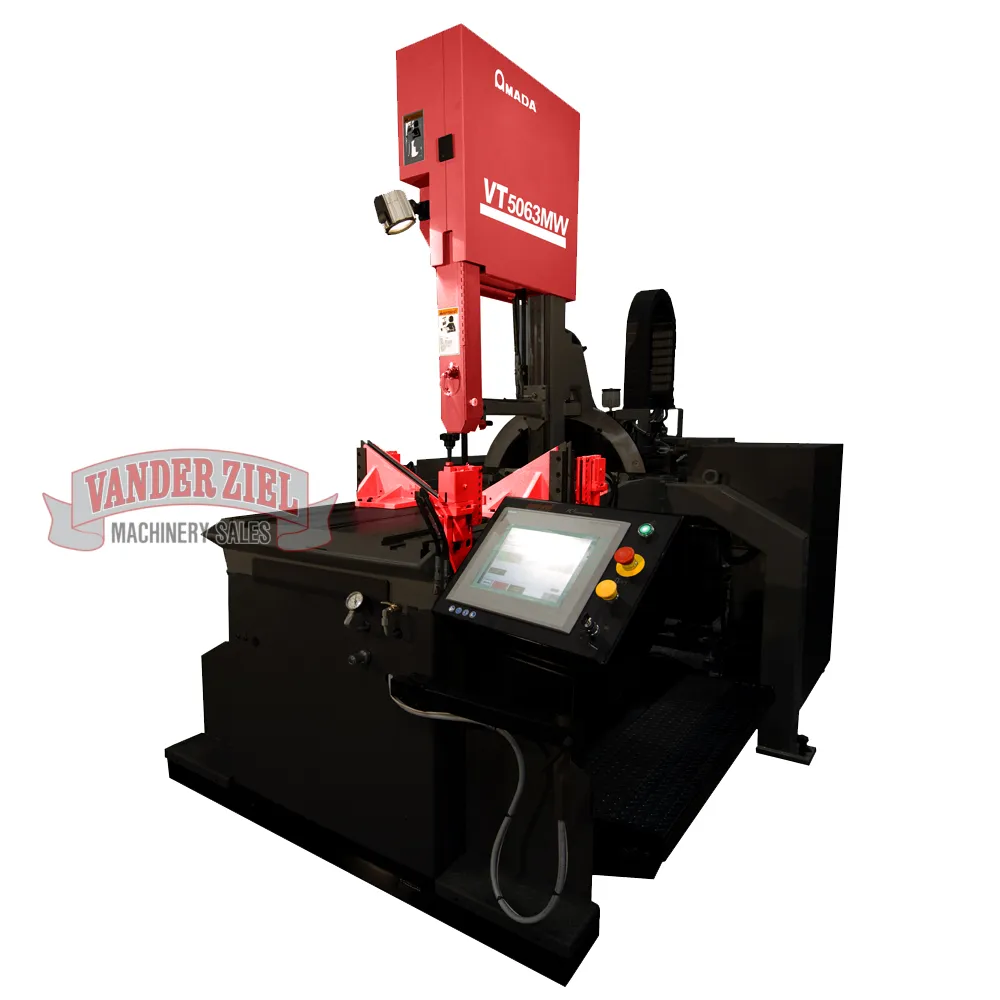

Amada VT5063MW Semi-Automatic Vertical Tilt-Frame Saw, 20" x 25" Capacity - NEW

Amada VT5063MW Semi-Automatic Vertical Tilt-Frame Saw, 20" x 25" Capacity - NEW

SKU#2321003a

Specifications and Features

NOTE:  Metric specifications represent nearest SI Unit converted from the basic U.S. Customary Unit.

Capacity                                   Rectangles                                           Rounds

Nominal                                    20" x 25" (508 mm x 635 mm)                 20" (508 mm)
Blade at 45^o                              20" x 17" (508 mm x 432 mm)                 17" (432 mm)
Blade at 60^o                              20" x 11.25" (508 mm x 285 mm)            11.25" (285 mm)

 Blade Drive:  Electric with sensor less vector control for smooth acceleration and full torque.

Speed Range:  Infinitely variable:
30 to 500 FPM (9 to 152 m/min), Standard
30 to 500 FPM (9 to 152 m/min), Optional (Modification M1 10 HP)

 Tilting Column:  For miter cutting up to 60^o left and right of vertical. Hydraulically powered cam link design includes built in protractor with encoder feedback and MARVEL PC3 controller.

Touch Screen Control: Blade speed, feed pressure and angles are selected using the convenient, operator friendly touch screen control.

3° Canted Column:  Standard 3-degree forward approach angle, for increased efficiency in cutting of structural materials.

(Non Canted option available for $2,100.00 additional)

Feed Force: Direct Force Sensing Electric Ball Screw Feed 0 - 350 lbs. (1560 N); column travels on recirculating linear ball ways. Feed pressure can be automatically set when material is selected.

Jammed Blade Protection: Automatically senses resistance as the column returns and stops to prevent blade damage.

Blade:  17' 6" (5334 mm) long x 1.25" (32 mm) wide, .042" (1.07 mm).  One Welded-Edge Band is furnished with each machine as part of standard Start-up supplies.

Blade Guides: Rotating Easy Load Combination Carbide and Ball Bearing Roller guides with self tensioning design.

Blade Tension:  Hydraulically controlled, 45,000 psi. max. (310 MPa).  Machine equipped with automatic blade break/blade stall shut-off switch.

Upper Blade Guide Arm:  Hydraulically positioned and locking, controlled by selector switch at operator's station.

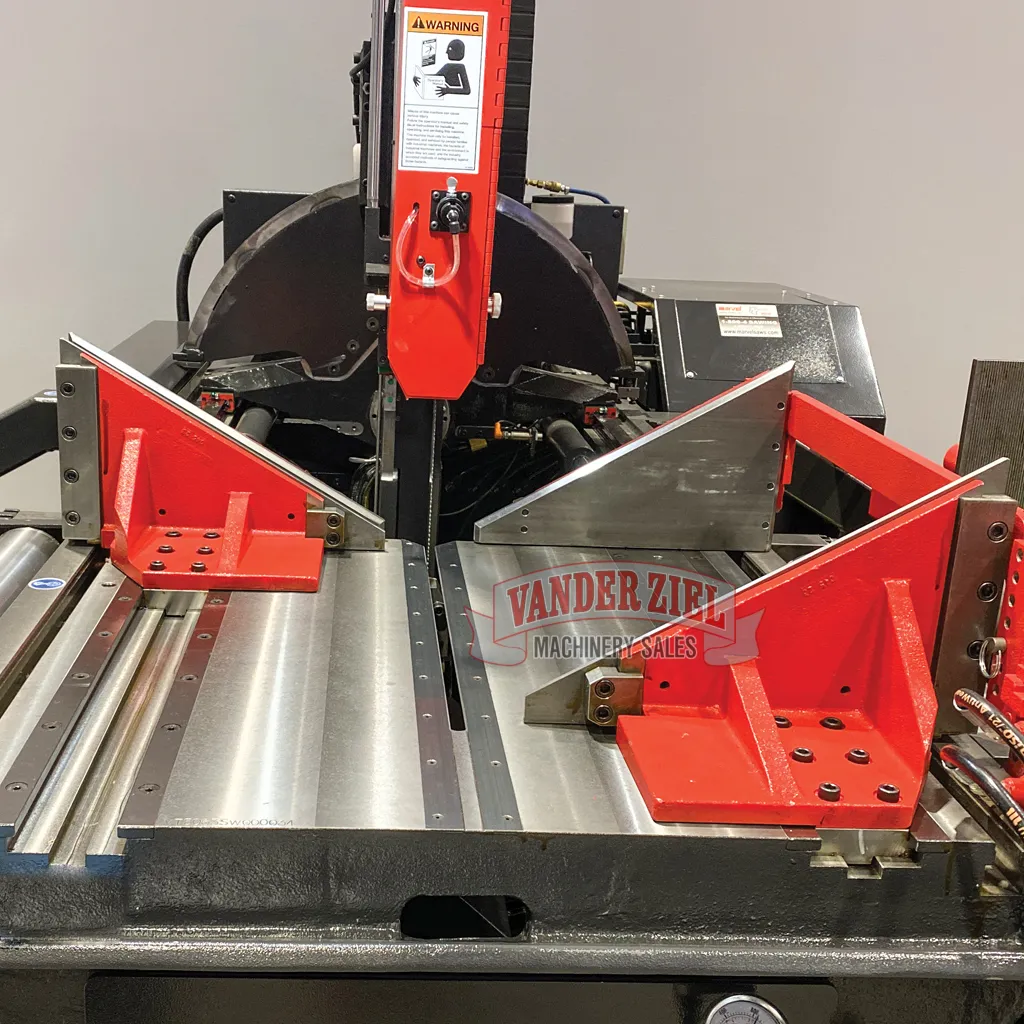

Vises:  Hydraulic, full stroking with 9-1/2" high x 15" wide 60^o faceplates.  Optional variable vise pressure available (Option Code M9A).

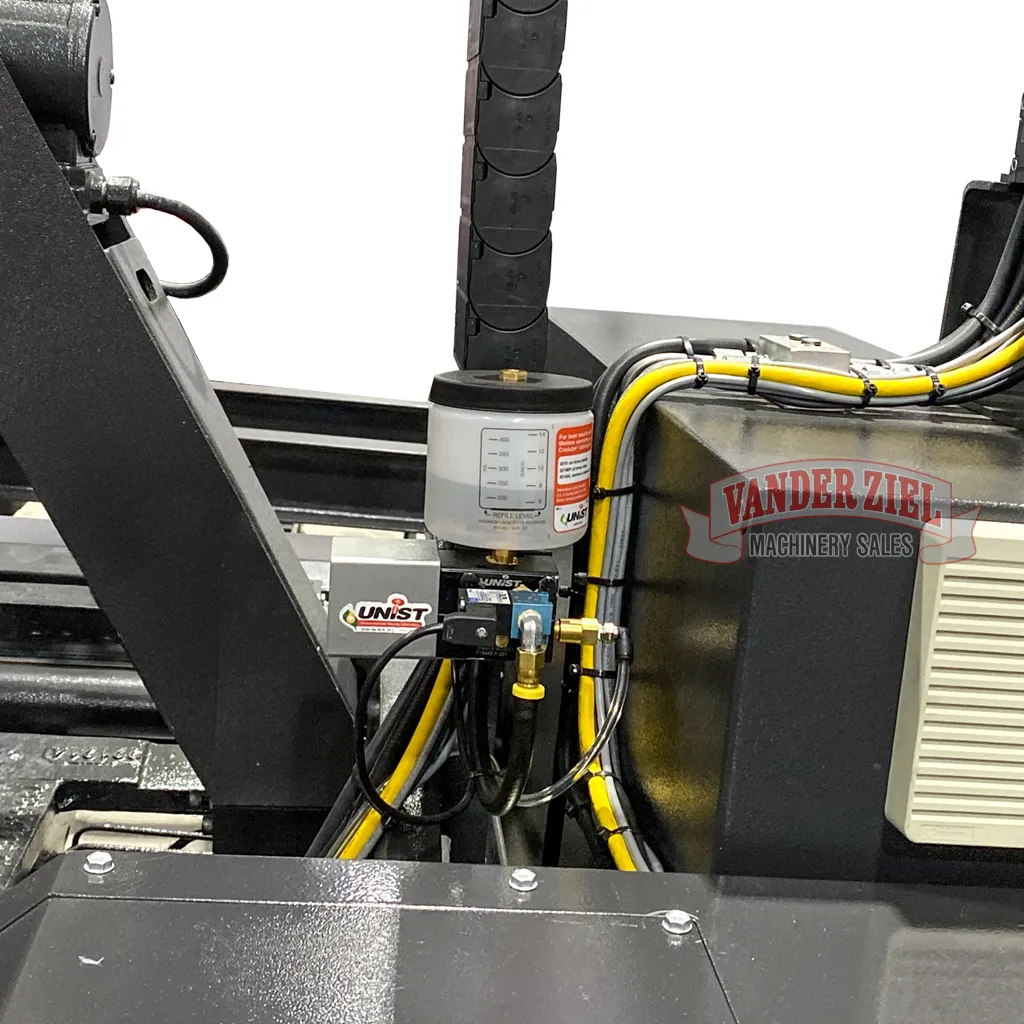

Coolant System:  Built-in with Flood system (60 Gallon Capacity), Drop Lubrication system available (Requires compressed air connection) (Option Code ML1 & ML2), including chip pan with chip removal ramp (optional Manual or power Chip Conveyors available).

Work-Rest Rollers:  Two turned ball bearing rollers, one on each side of the machine bed.

Flushing Hose:  Washes away chips from hard-to-get-at places, reducing clean-up time.

Standard Left-to-Right Work Entry:  Opposite Hand - RIGHT-TO-LEFT work entry available (Modification M4A).

Motors:  Main Drive: 7.5 H.P., 1800 RPM, totally enclosed, fan cooled, ball bearing. (10 H.P. supplied with High

Speed Blade Option 2150PC/M1)
Coolant Pump: 1/8 H.P. (.1 kW), I.P. 54 Rating, totally enclosed motor built-in integrally.
Hydraulic Pump: 5 H.P. (3.7 kW), 1800 RPM, totally enclosed fan cooled, ball bearing, system pressure 900 psi (6.2 MPa).

Controls:  IEC fused disconnect switch and magnetic motor starters with overload and low-voltage protection.  Power supply provides low voltage (24 volts DC) control to all push buttons at operator's control panel and machine lighting circuits.  PLC control and drives mounted in moisture tight compartment with vibration isolation mountings.  Electrical Equipment conforms to National Electrical Code NFPA 79.  The Electrical Control Panel is U.L. Labeled.

Notice: This quotation is based on the assumption that the end user's electrical power supply conforms to National Electrical Code NFPA No. 79-2012, section 4.3 at the machine terminals.  A copy of this section is available upon request.

 Warning: Failure of the end user's electrical supply to conform to the above standard can hinder machine performance and may require the addition of extra cost components not included with the standard machine.  Repair and replacement of components damaged as a result of an inadequate power supply are not covered by the manufacturer's warranty.

 Start-up Supplies included with each machine:

Hydraulic Oil: 10 gallons (38 liters) in machine.

Cutting Fluid: 2 gallons (8 liters) soluble oil.

Bandsaw Blades: One (1)  Welded-Edge Blade.

Manufacturer's Technical Data: Two (2) sets consisting of parts list, operating and maintenance instructions, installation plan, wiring, elementary electric and hydraulic diagrams, and electrical and hydraulic component list.

Shipping Weight 5,400 lbs. (2,455 kg)

 Voltage Requirements:  Indicate the required voltage.
208 volt, 3 phase, 60 cycle (EK 1)
230 volt, 3 phase, 60 cycle (EK 2)
460 volt, 3 phase, 60 cycle (EK 3)
575 volt, 3 phase, 60 cycle (EK 4)
