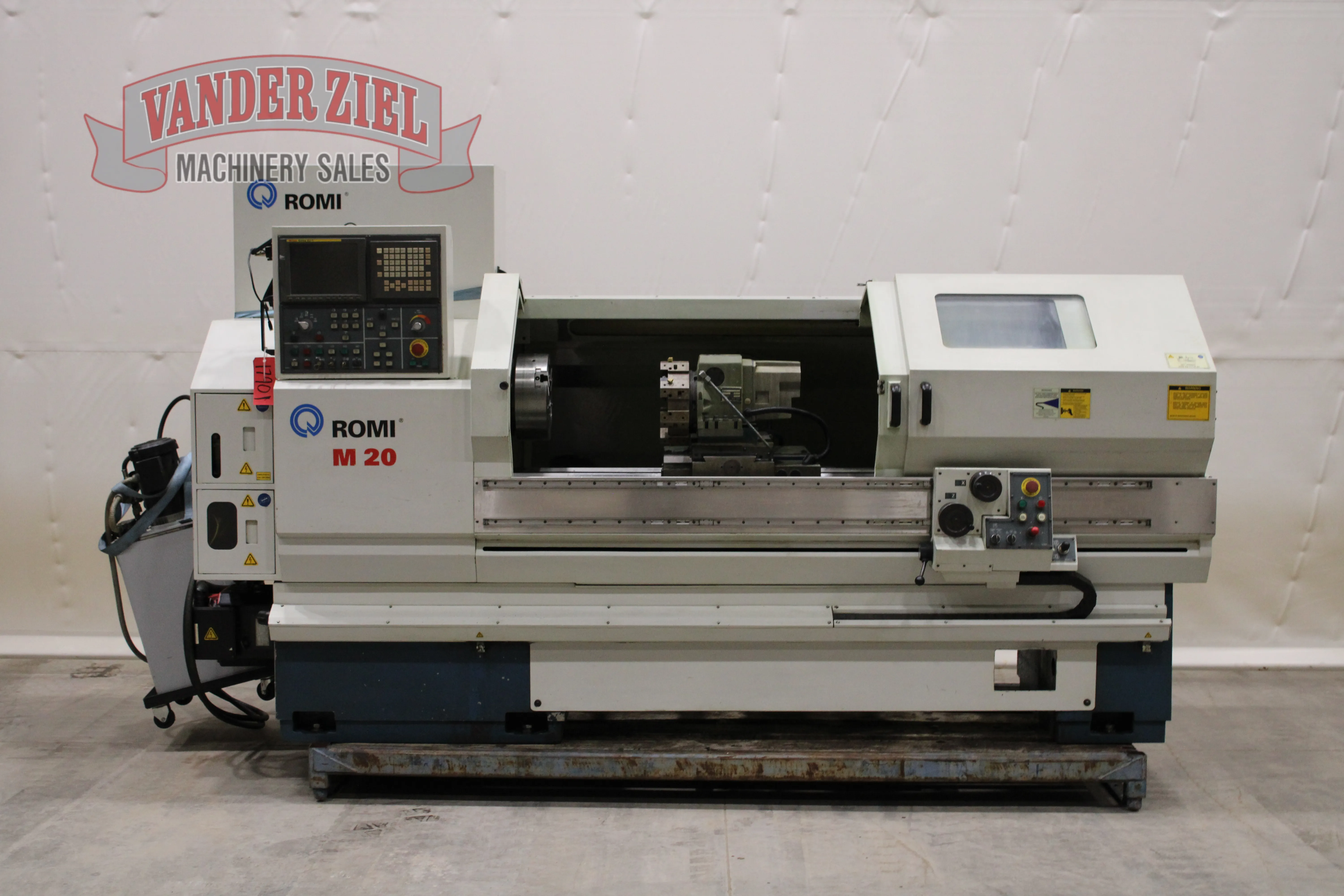

Romi 20.5" x 60" CNC Lathe, Model M20, 3.15" Spindle Bore

Romi 20.5" x 60" CNC Lathe, Model M20, 3.15" Spindle Bore

Asset # 17901

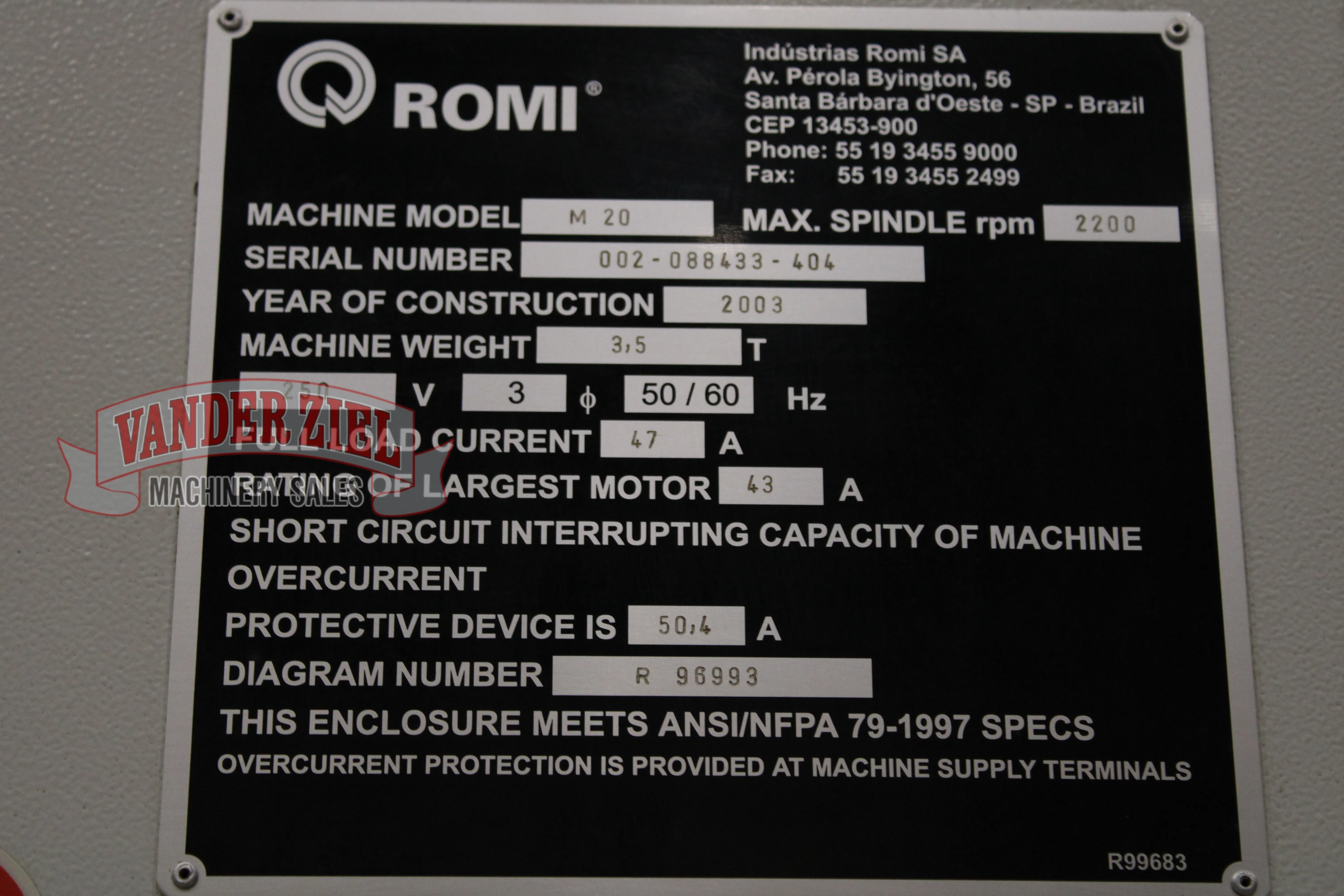

Serial # 002-088433-404

Capacity (In inches)

Center Height: 10.04
Distance Between Centers: 60
Swing Over Bed: 20.5
Swing Over Cross Side: 10.2
Swing Over Saddle Wings: 17.7
X-Axis Travel: 11
Z-Axis Travel: 60

Bed

Width: 13.39 inches
Length: 13.23 inches

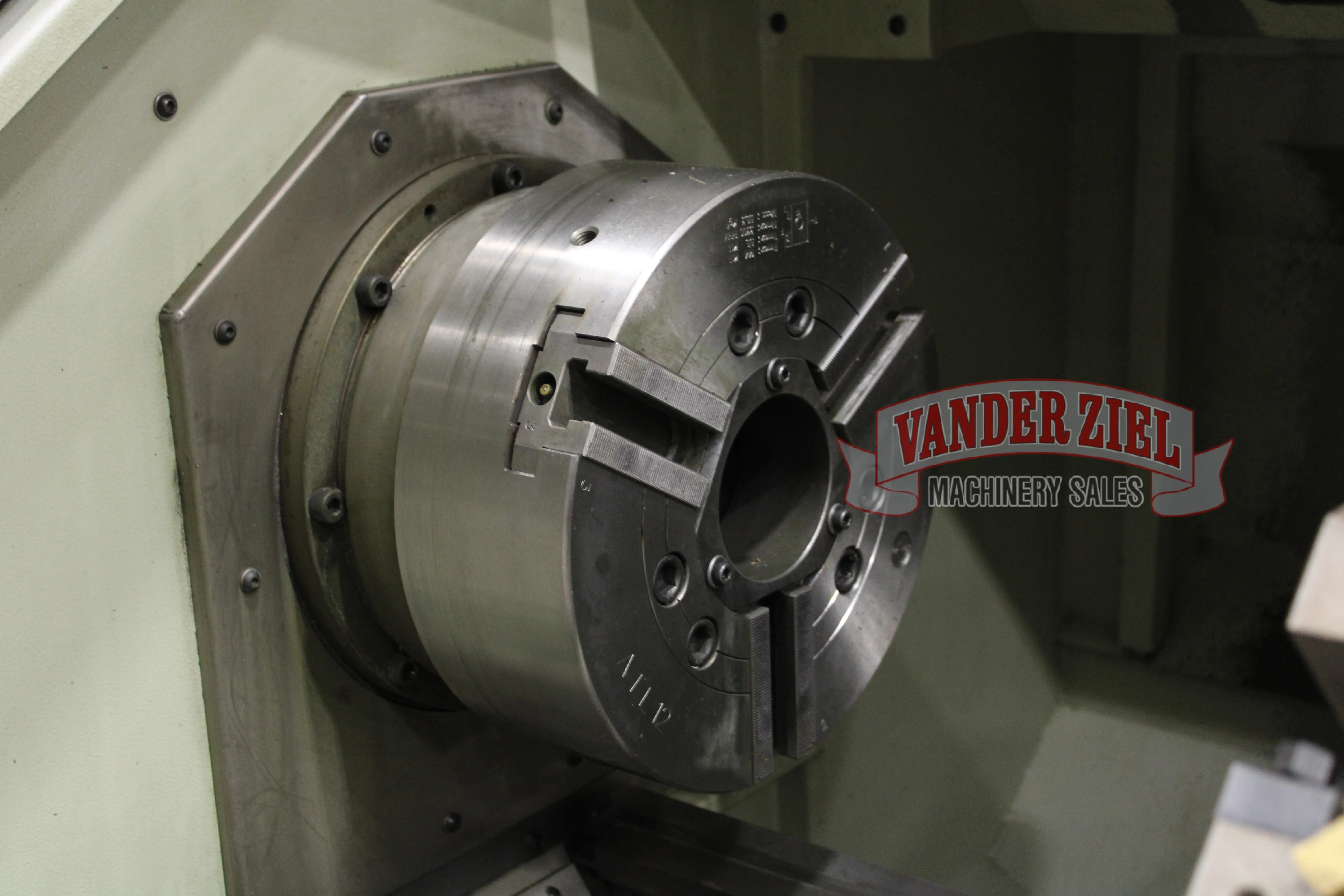

Headstock (Accessory)

Spindle Hole Diameter: 3.15 inches
Speed Range 2 a 2.200 RPM

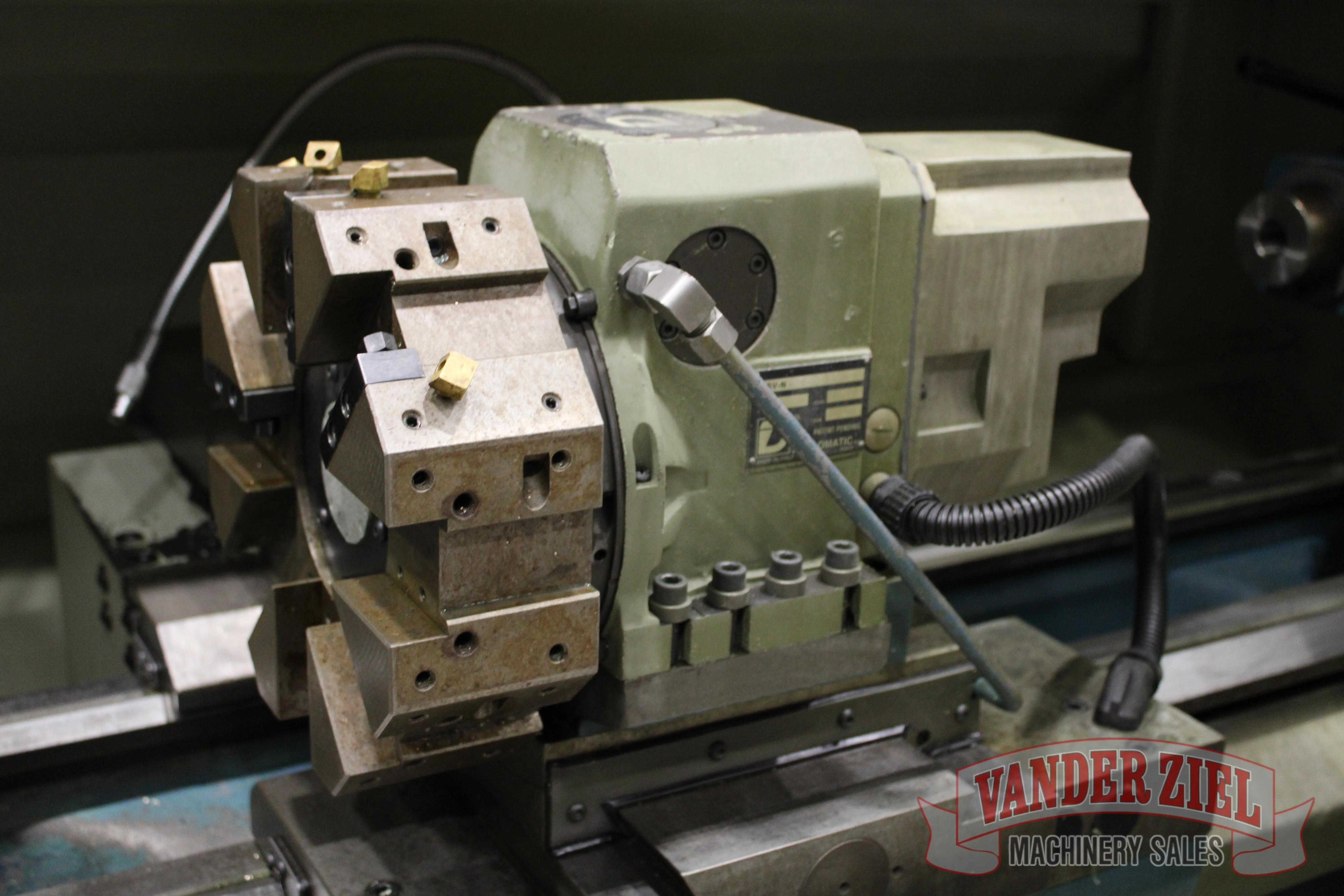

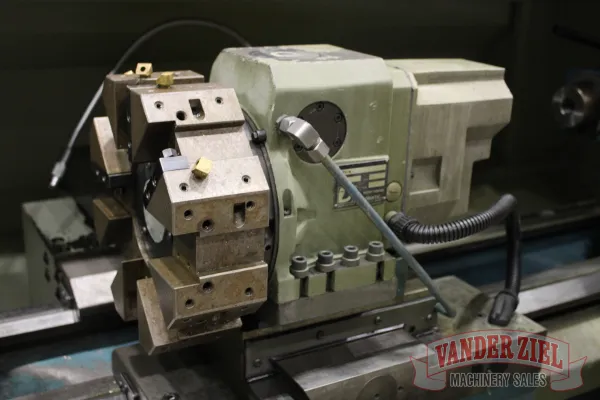

8-Station Disk Type Automatic Turret (Accessory)

Next Toll Index Time: 0.6 seconds
180° Index Time: 1.5 seconds
Number of Stations: 8
Tool Size
Square: 1in x 1in
Bar (dia): ø1 1/14

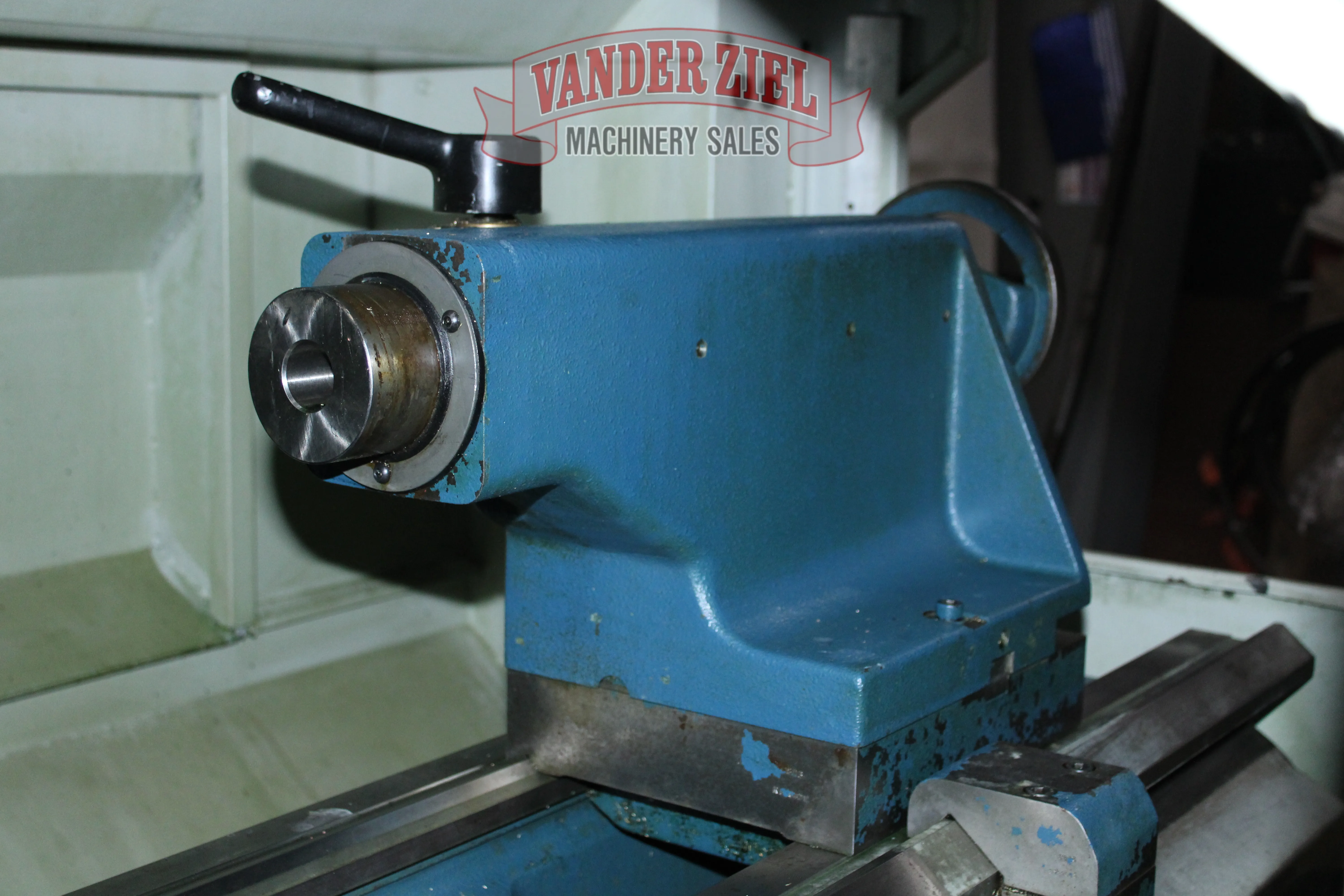

Manual Tailstock

Quill Travel: 5.1 inches
Quill Taper: 4 centimeters
Quill Diameter: 3.1 inches

Feed

Rapid Traverse (Z-Axis): 395 inches/minute
Rapid Traverse (X-Axis): 295 inches/minute

Feed Force

Longitudinal Feed Force (Z-Axis): 4524 newtons
Transverse Feed Force (X-Axis): 5655 newtons

Electrical Specifications

AC Main Motor: 15 Horsepower

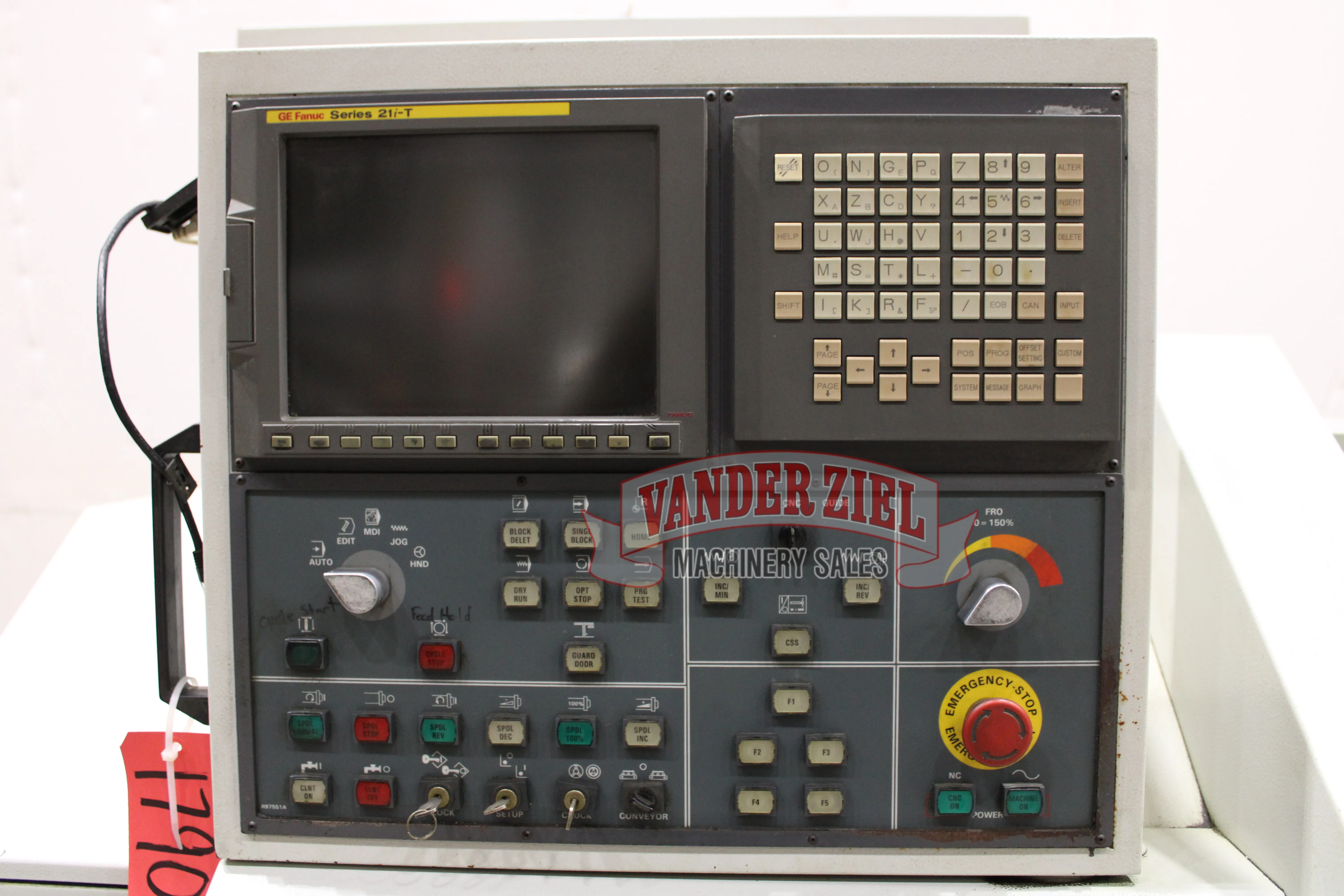

Power Consumption (CNG GE-Fanuc): 20 kVA
