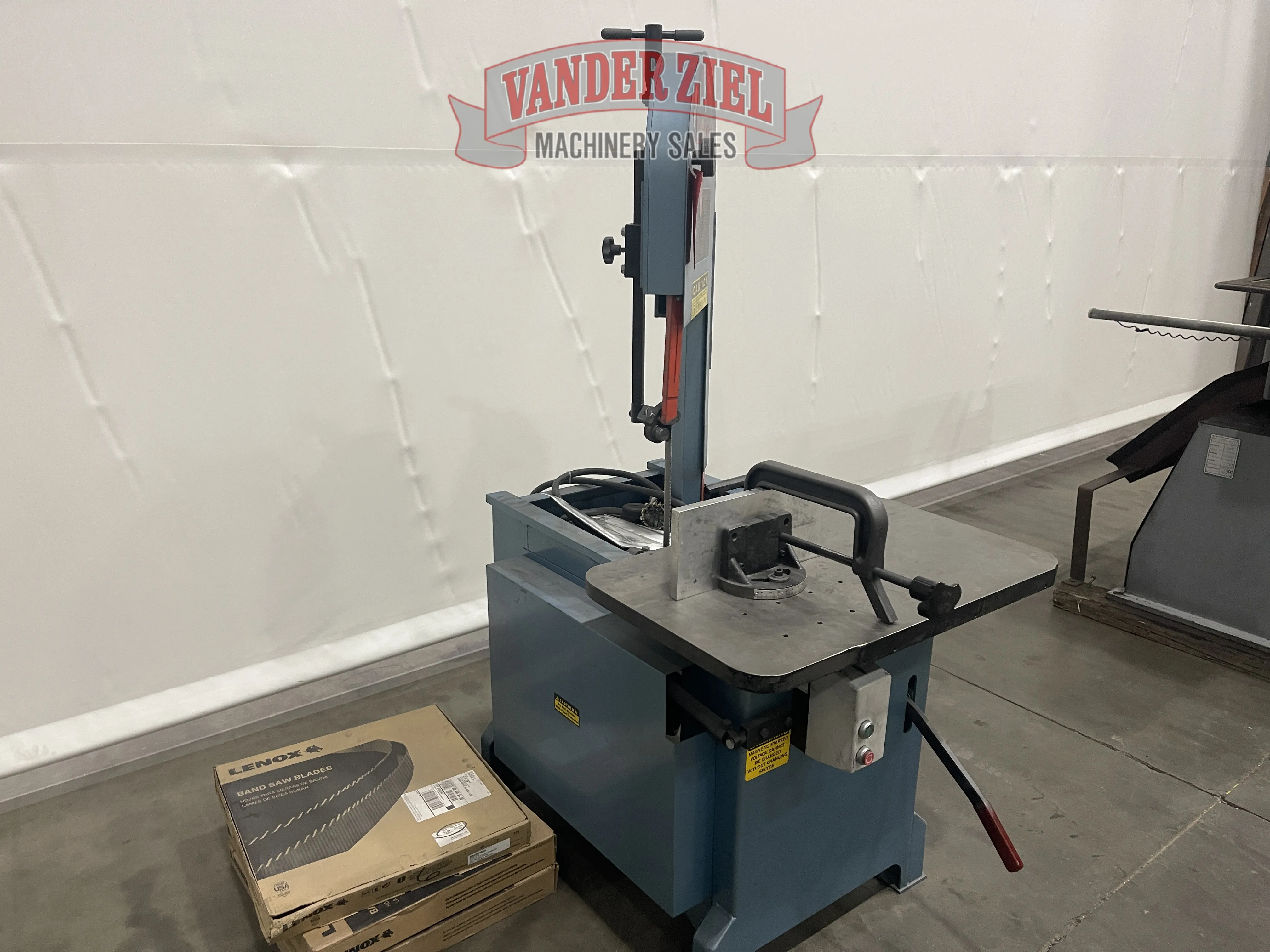

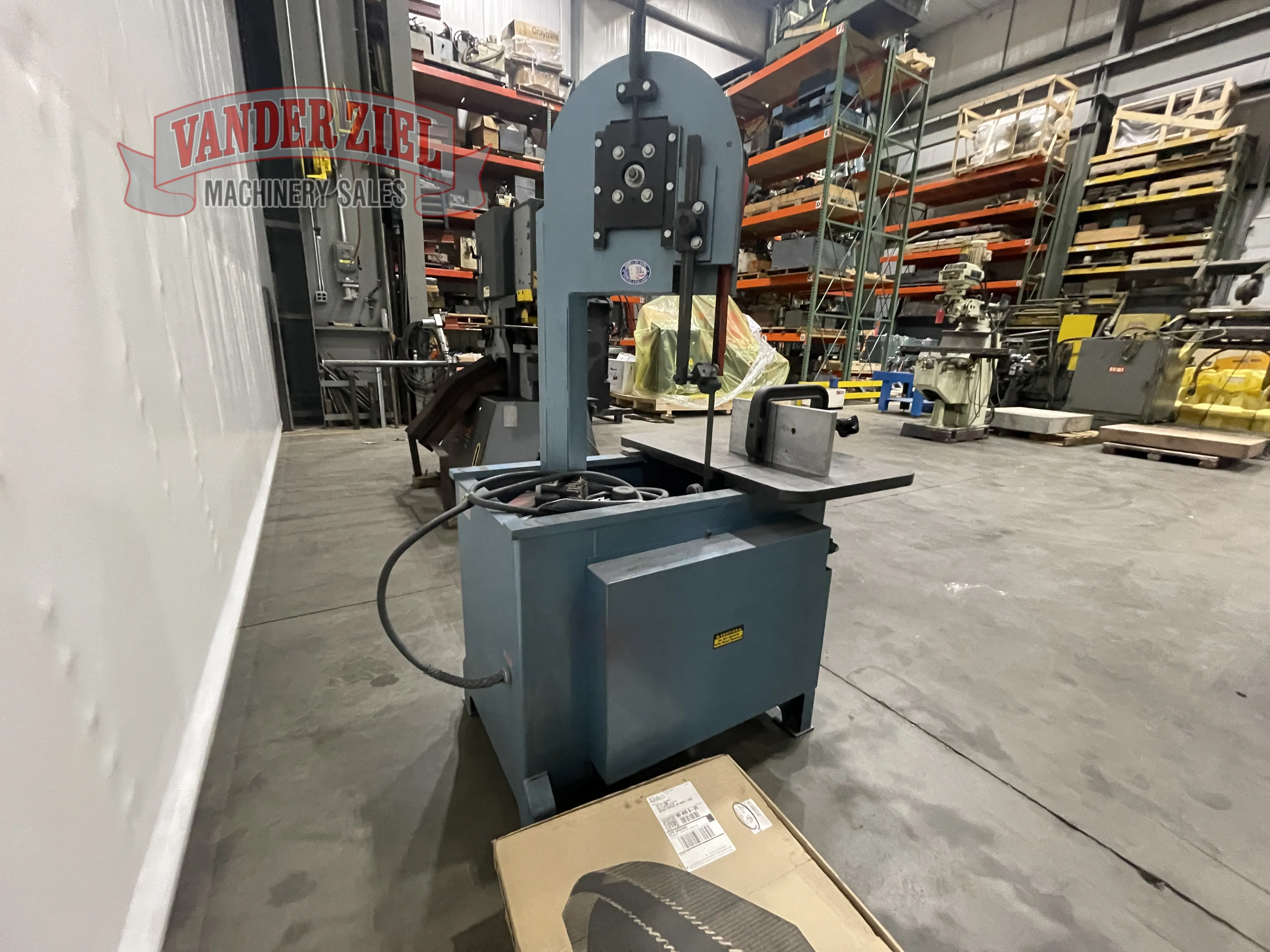

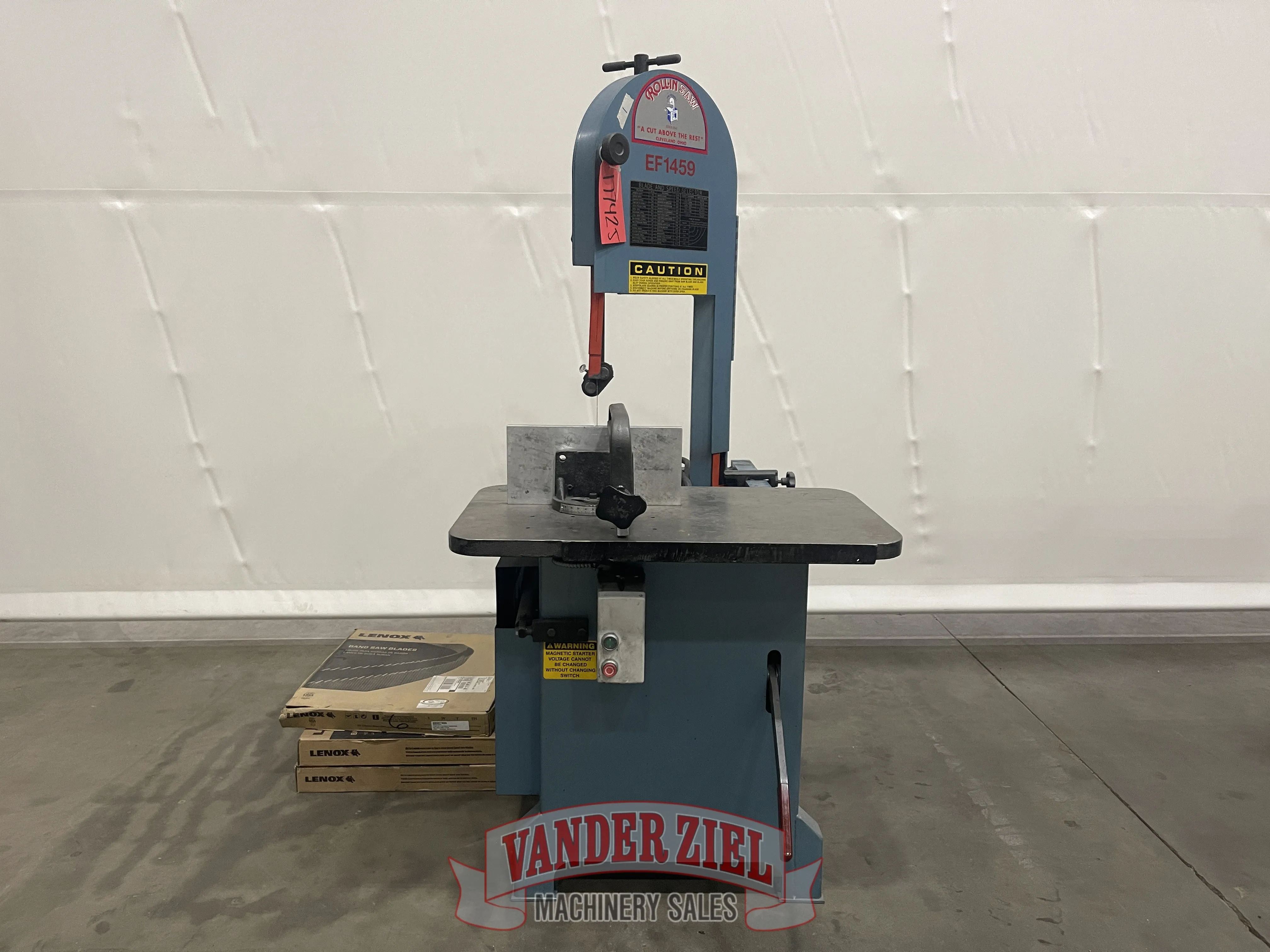

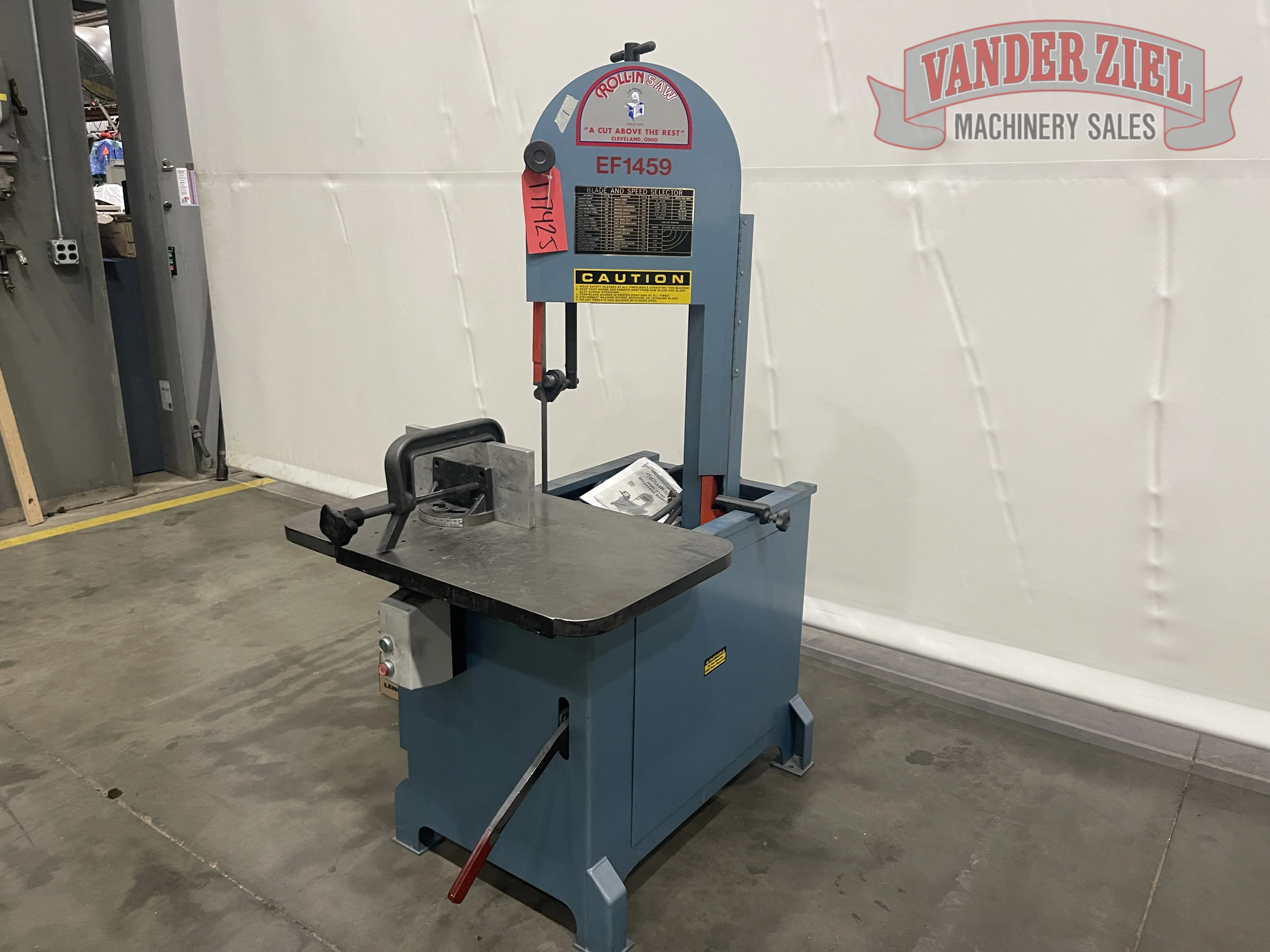

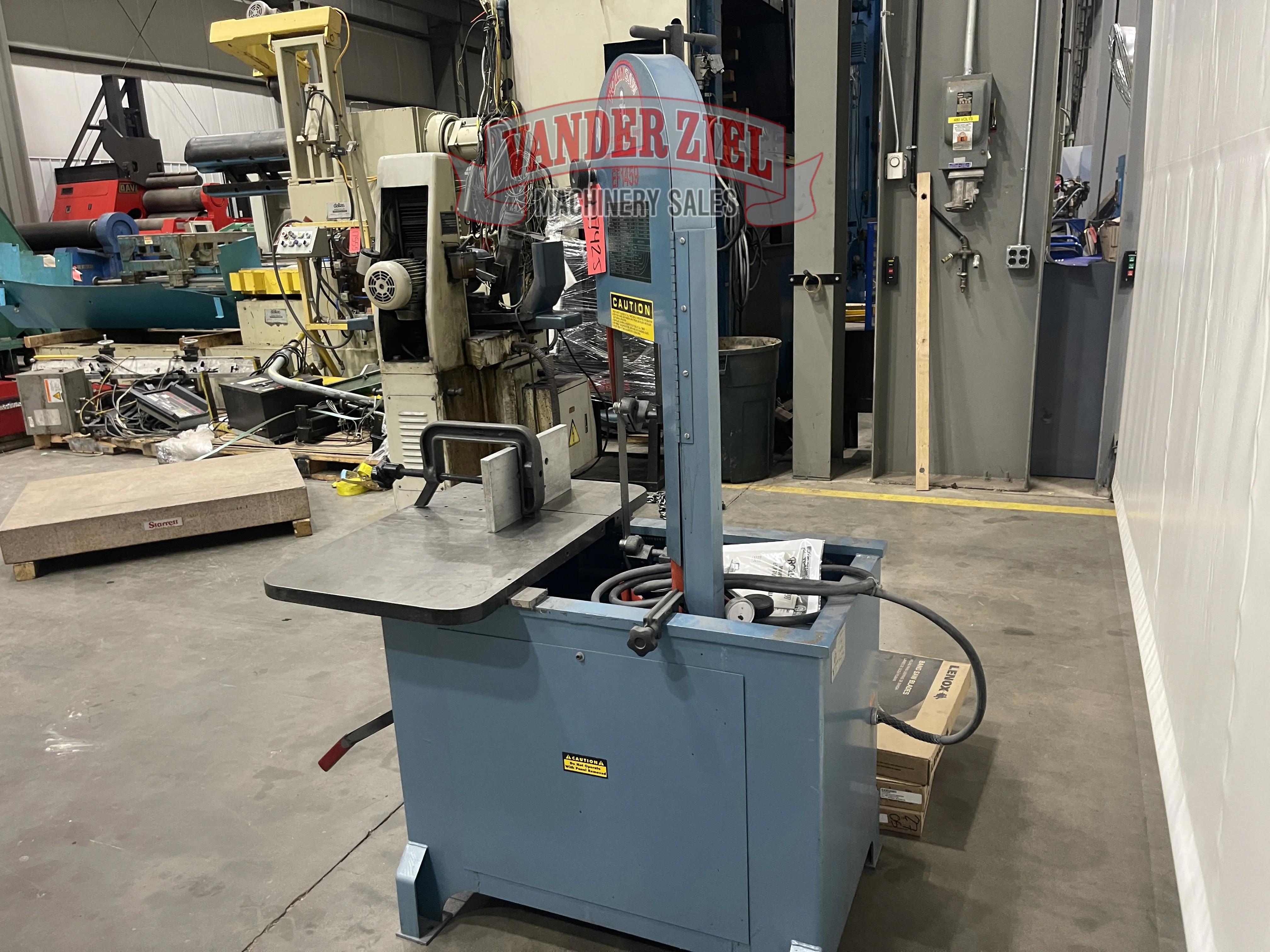

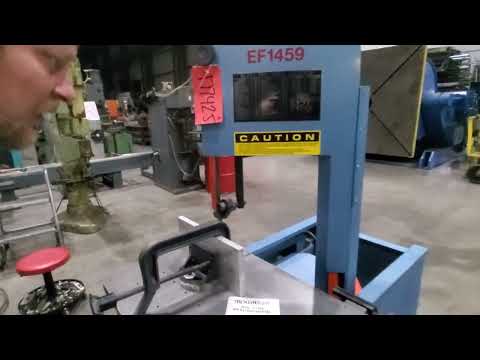

Roll-In EF1459 Roll In Vertical Bandsaw

Roll-In EF1459 Roll In Vertical Bandsaw

Asset # 17742J

•


  Blade Travel: 9"





•


  Cutting Capacity at 90°:



  •


    Round: 8-1/2"





  •


    Rectangular: 14-1/2" x 8-1/2"









•


  Capacity Under Guides (Height): 14-1/2"





•


  Throat (Width): 8-3/4"





•

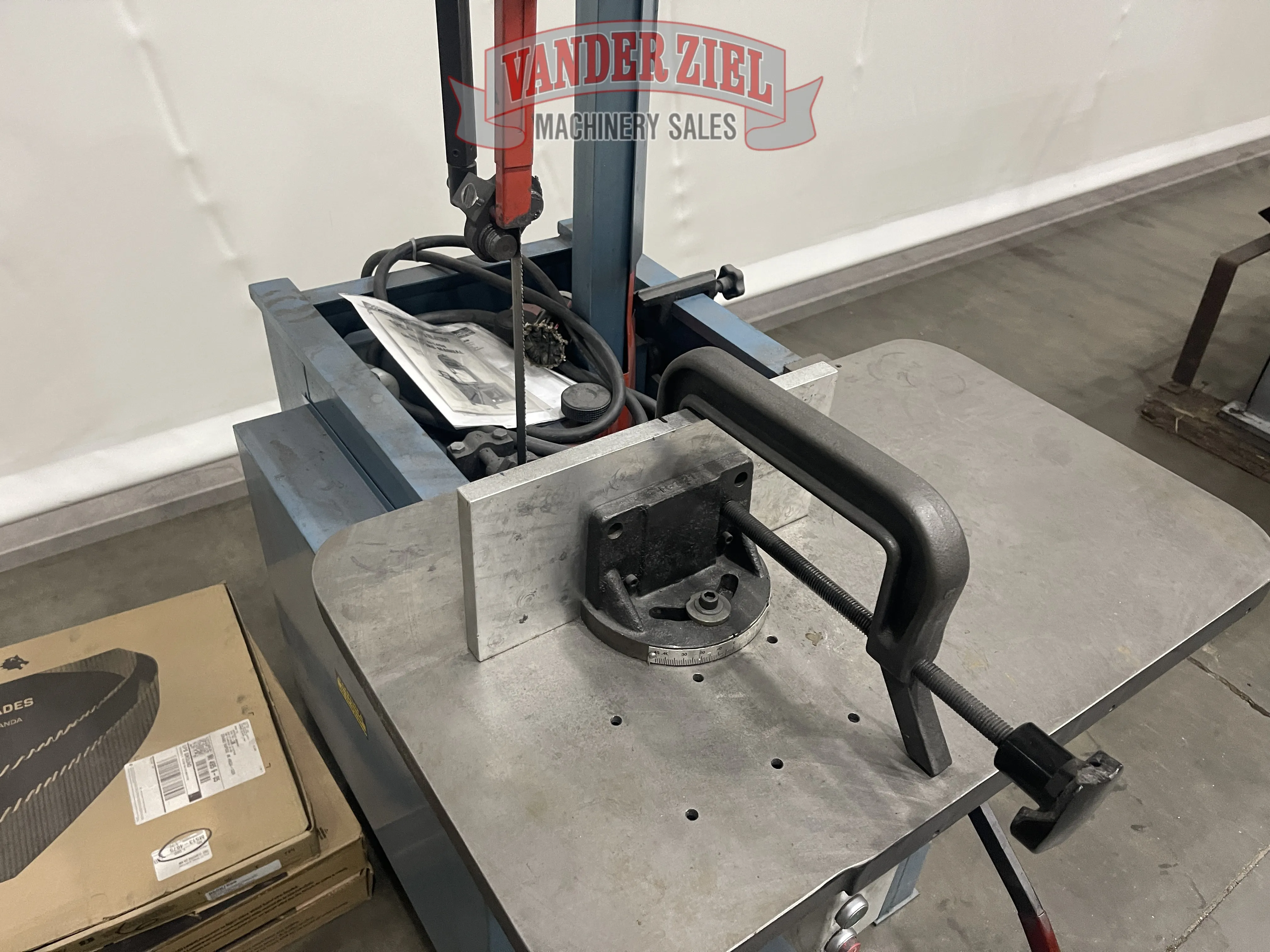

  Table Size: 18-1/2" x 30"





•


  Table Height (from floor): 30"





•

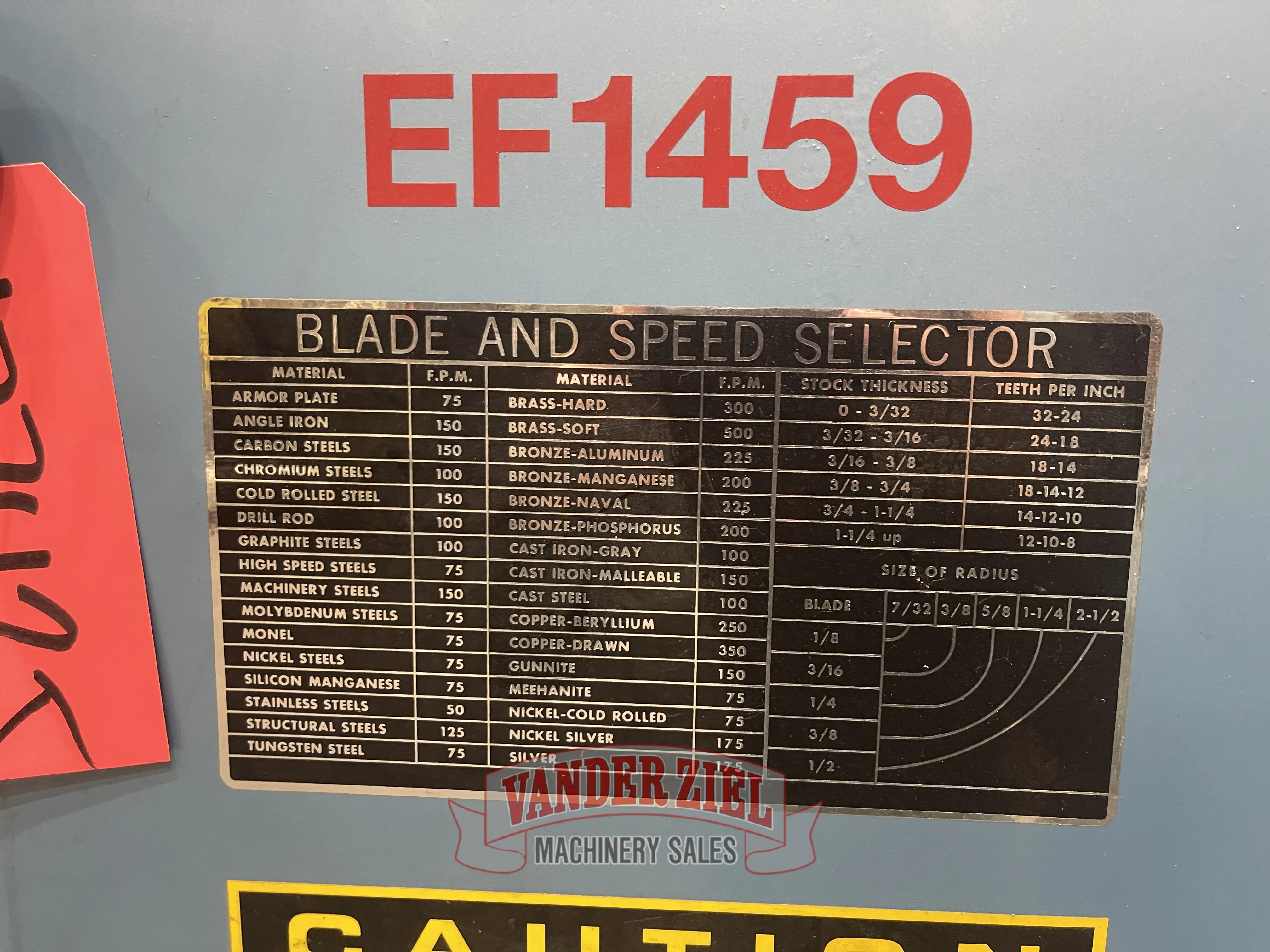

  Blade Speeds: 70, 140, 270, 525 FPM





•

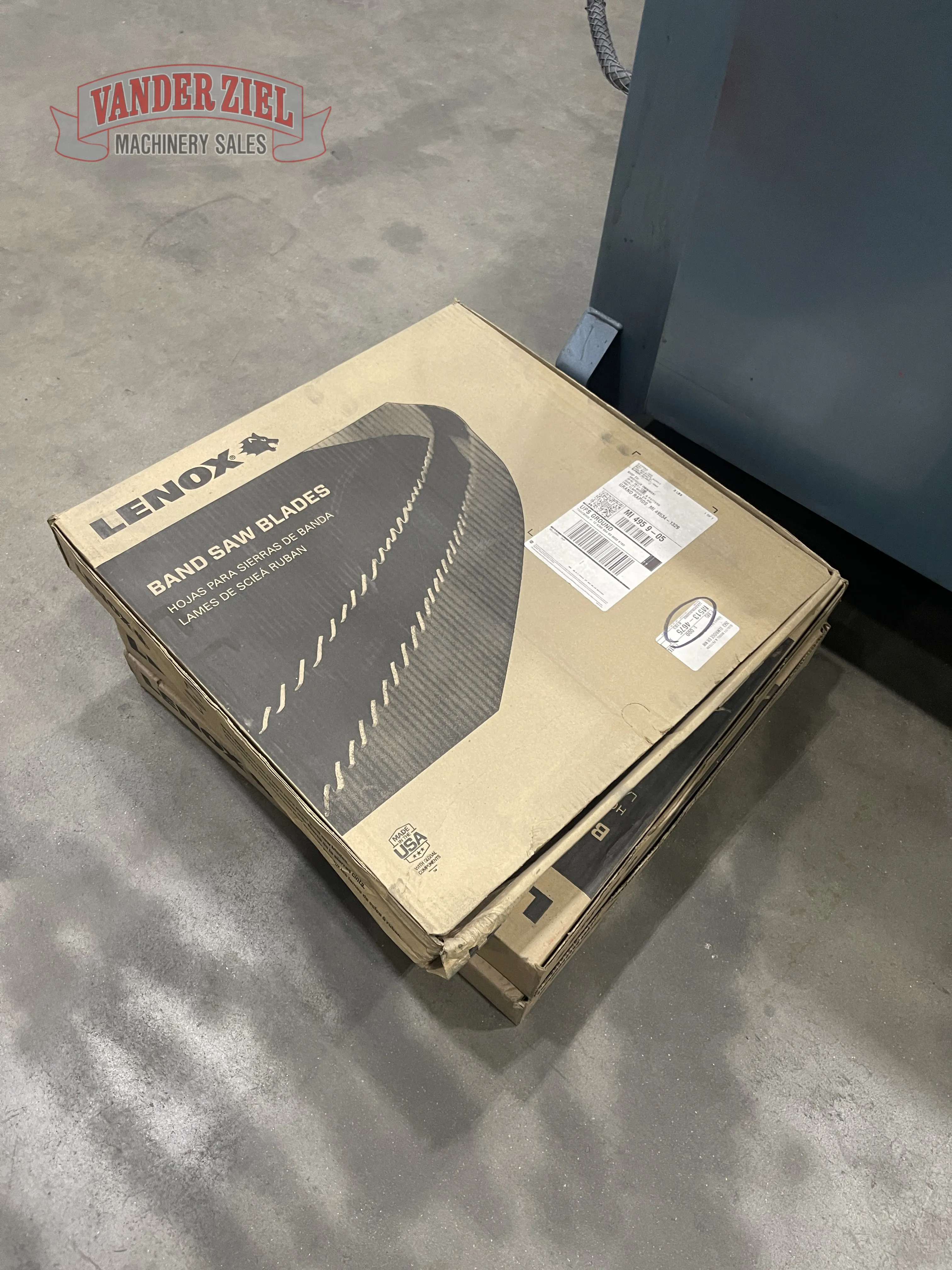

  Blade Size (Included): 3/4" x 10′ x .035", 8/12 TPI





•


  Acceptable Blade Widths: 1/4" to 3/4" (1" optional with guide rollers)





•


  Motor: 1 HP





•


  Voltage Options:



  •


    110V / 220V (Single Phase)





  •


    220V / 440V (Three Phase)









•


  Overall Dimensions (Approx.): 30" W x 40" L x 66" H





•


  Shipping Dimensions: 33" x 48" x 72"





•


  Shipping Weight: 650-700 lbs





•


  Feed System: Gravity-feed with hydraulic control





•


  Guide Rollers: Standard (1" optional)





•


  Pin Spacing: 4 / 12 / 64
