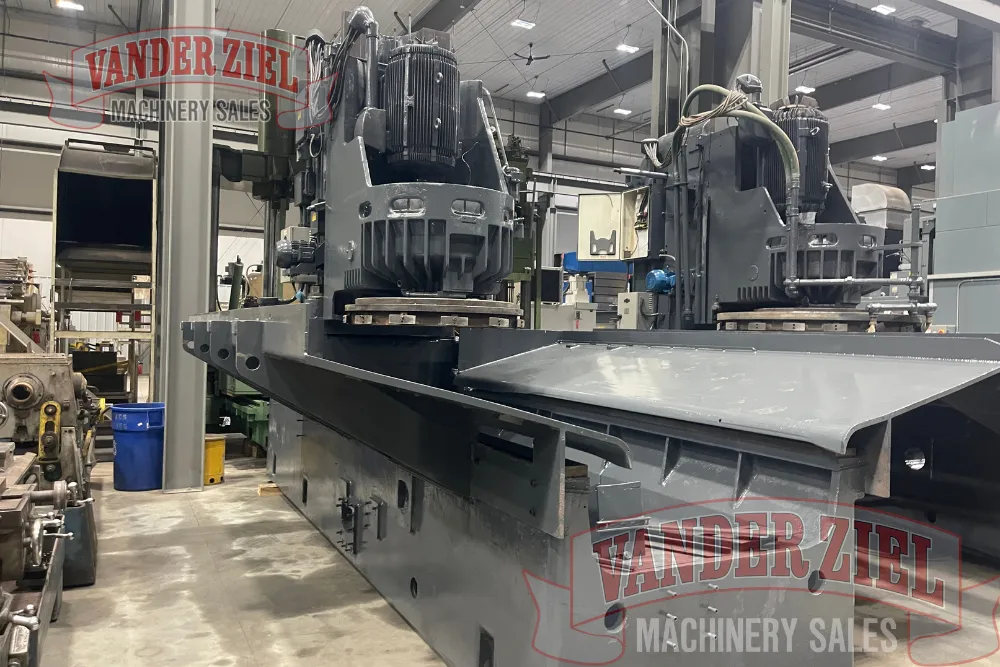

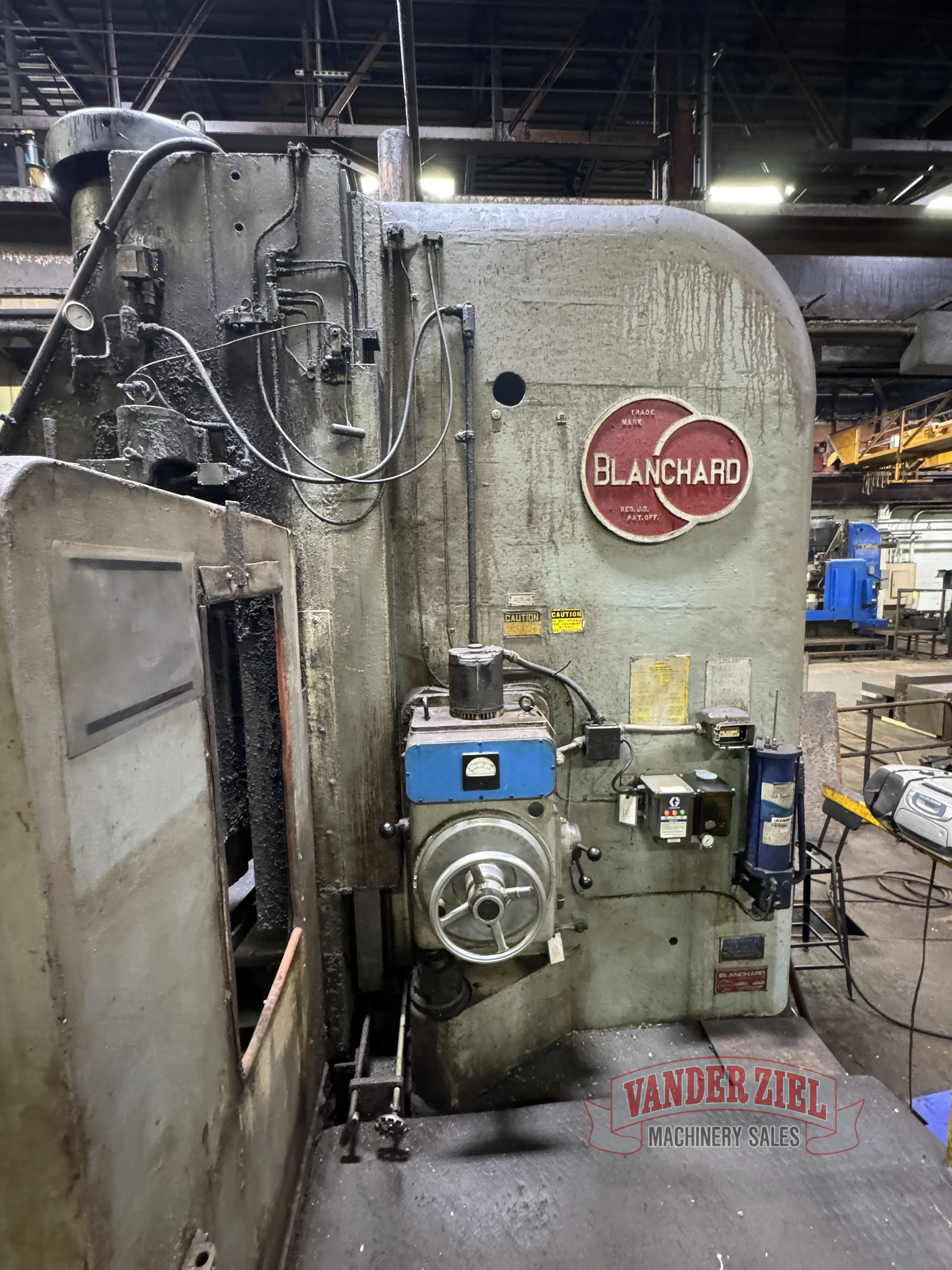

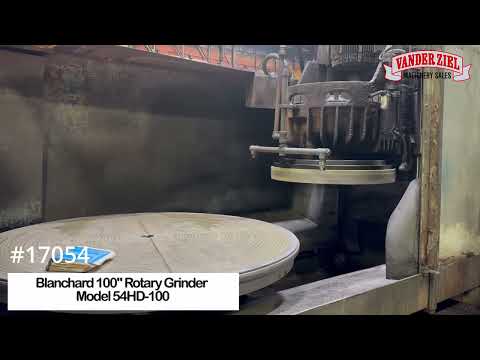

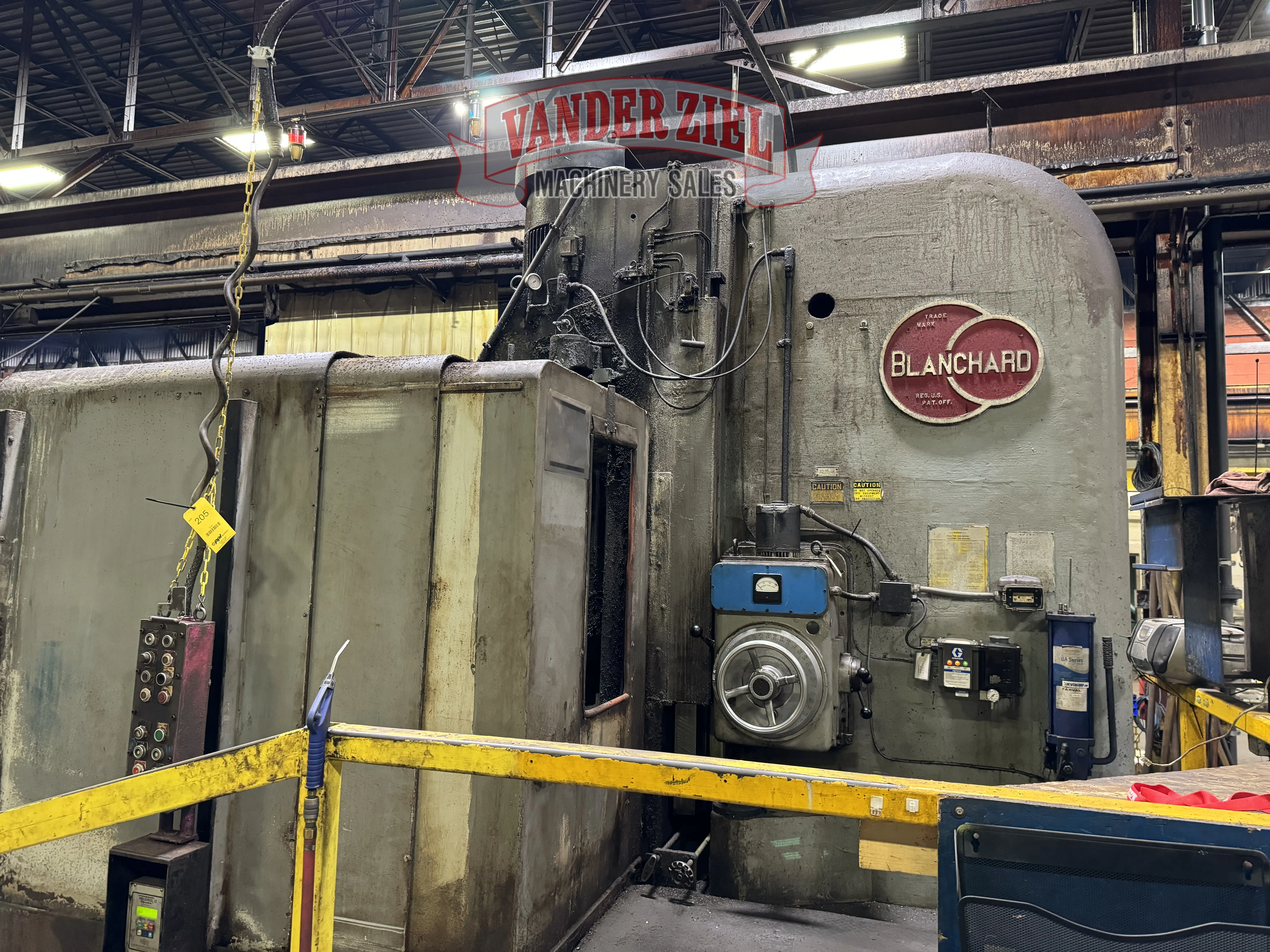

Blanchard 100" Rotary Grinder, Model 54HD-100

Blanchard 100" Rotary Grinder, Model 54HD-100

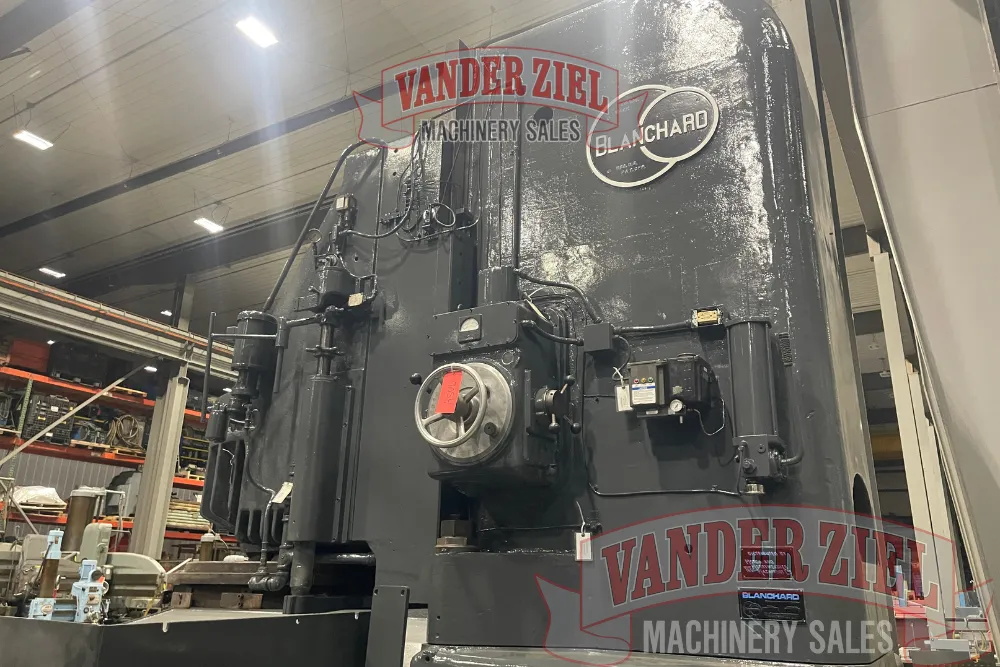

Machine is being REFURBISHED

Asset # 17054
Serial # 15247

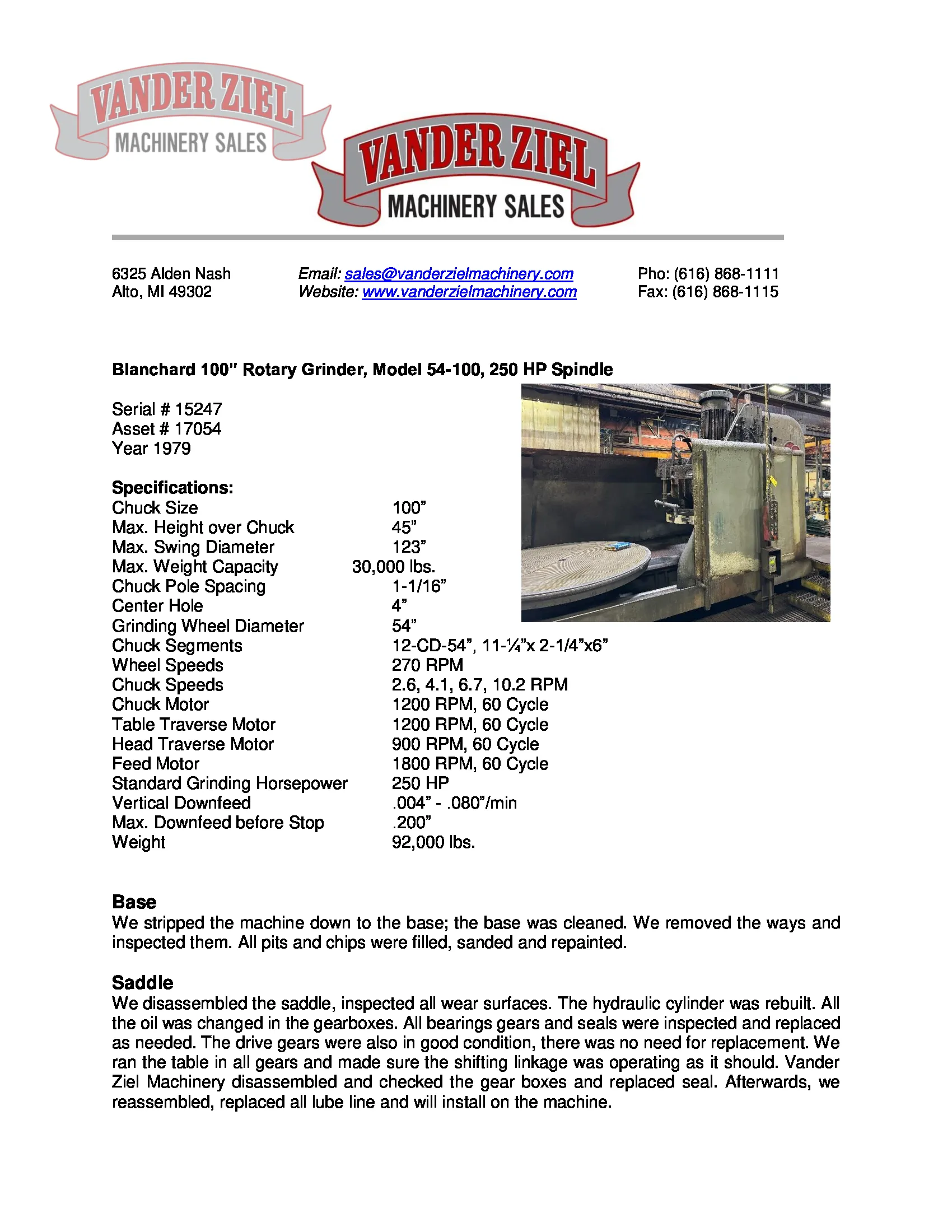

Specifications:

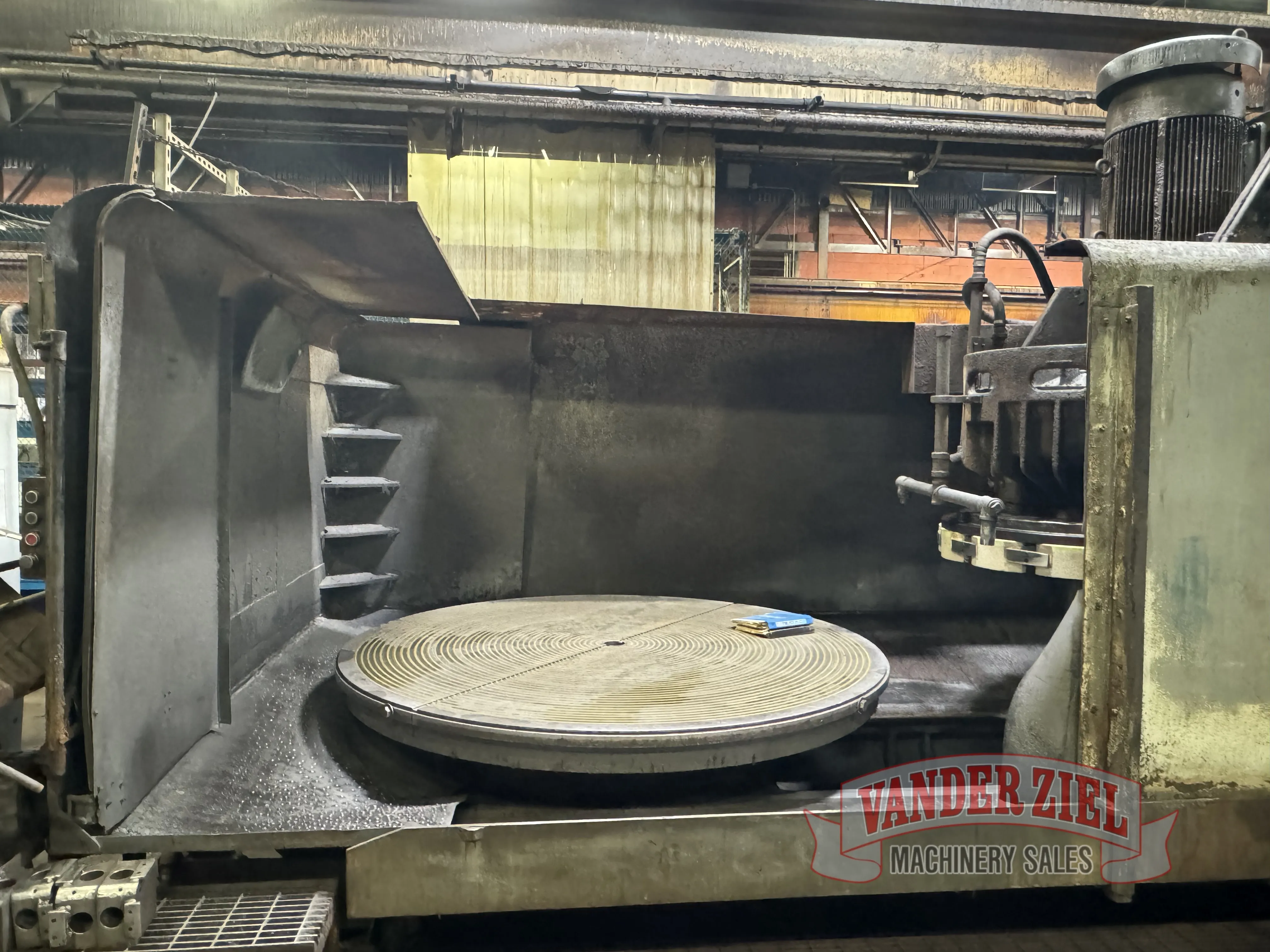

Chuck Size                                          100"
Vertical Range / Max. Height over Chuck                     45"
Max. Swing Diameter                         123"
Max. Weight Capacity                30,000 lbs.
Chuck Pole Spacing                           1-1/16"
Center Hole                                         4"
Grinding Wheel Diameter                   54"
Chuck Segments                                12-CD-54", 11- 1/4"x 2-1/4"x6"
Wheel Speeds                                    270 RPM
Chuck Speeds                                    2.6, 4.1, 6.7, 10.2 RPM
Chuck Motor                                       1200 RPM, 60 Cycle
Table Traverse Motor                         1200 RPM, 60 Cycle
Head Traverse Motor                         900 RPM, 60 Cycle
Feed Motor                                         1800 RPM, 60 Cycle
Standard Grinding Horsepower          250 HP
Vertical Downfeed                              .004" - .080"/min
Max. Downfeed before Stop               .200"
Weight                                                 92,000 lbs

Refurbished Chuck In 2015

Preliminary Specifications - Subject to Verification
