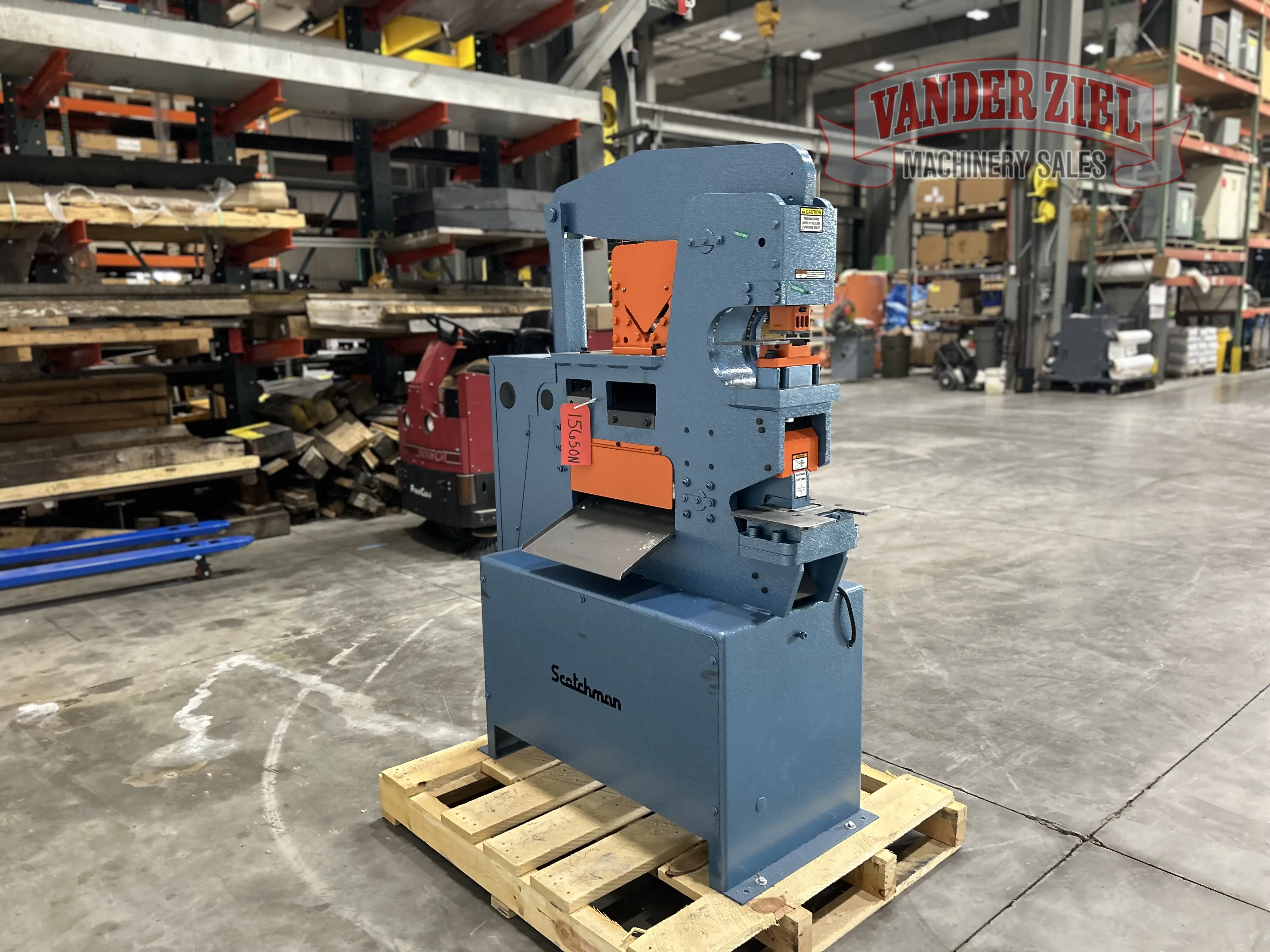

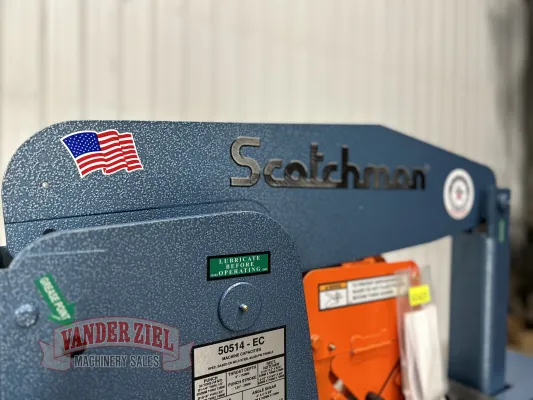

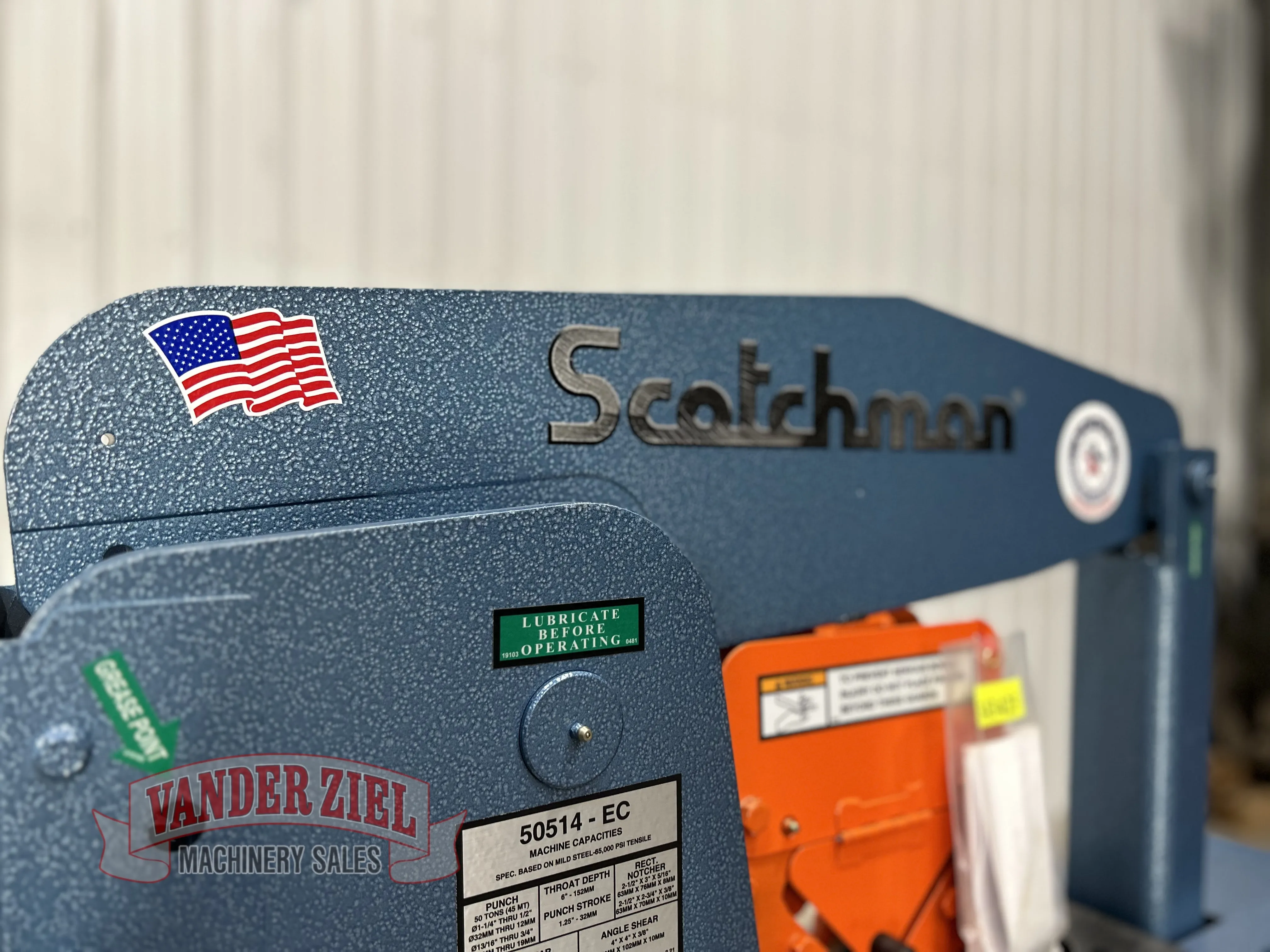

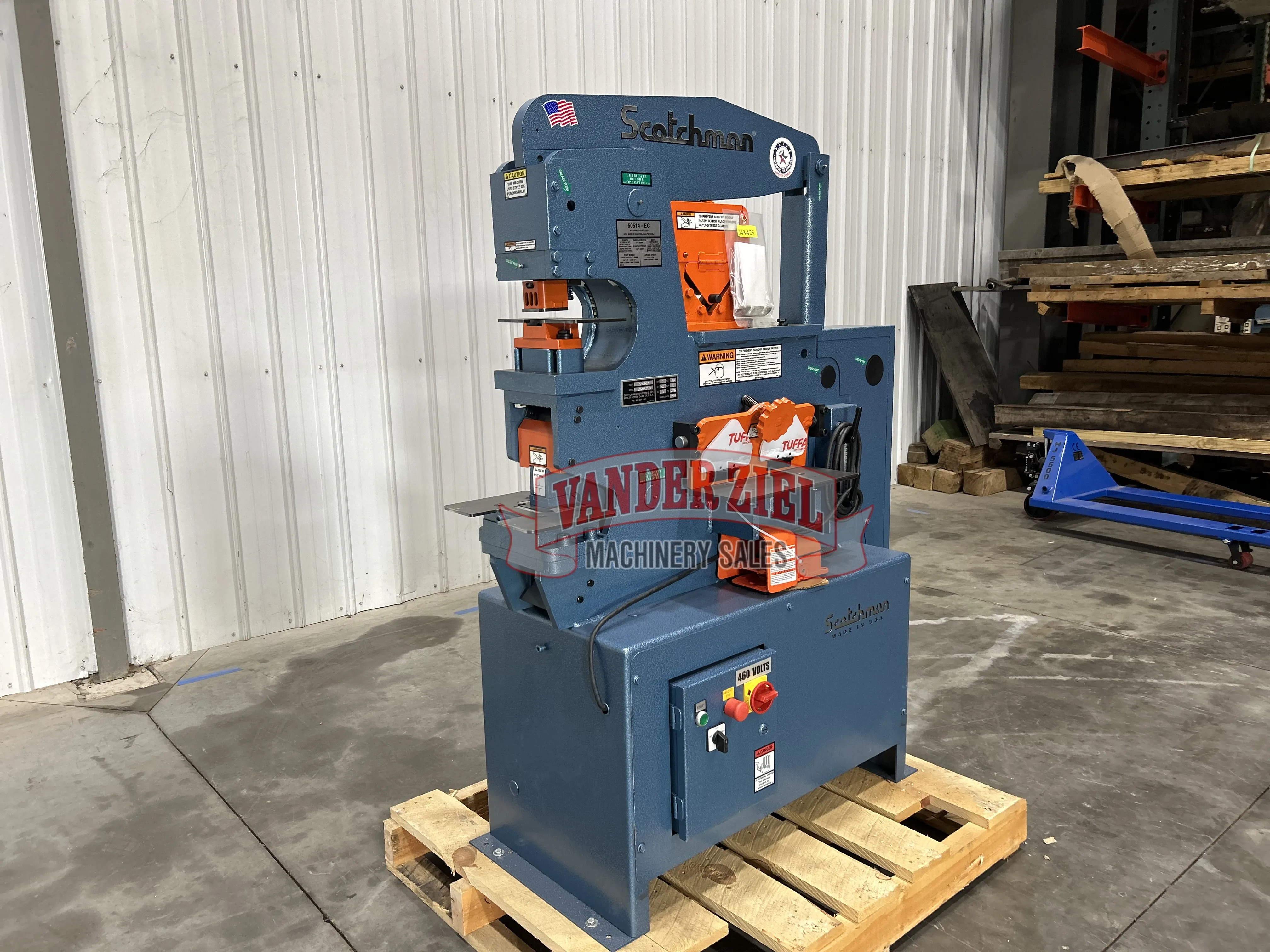

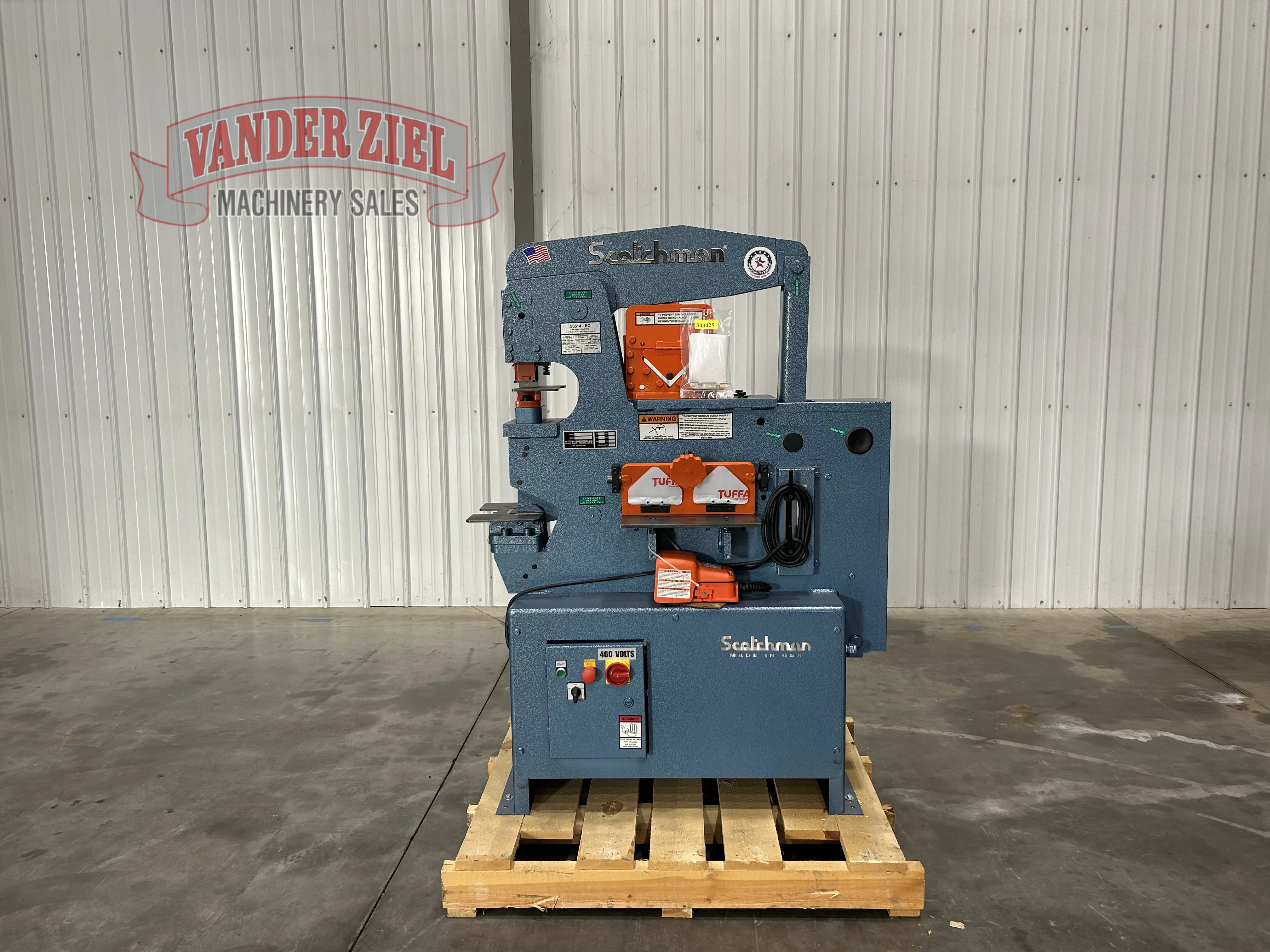

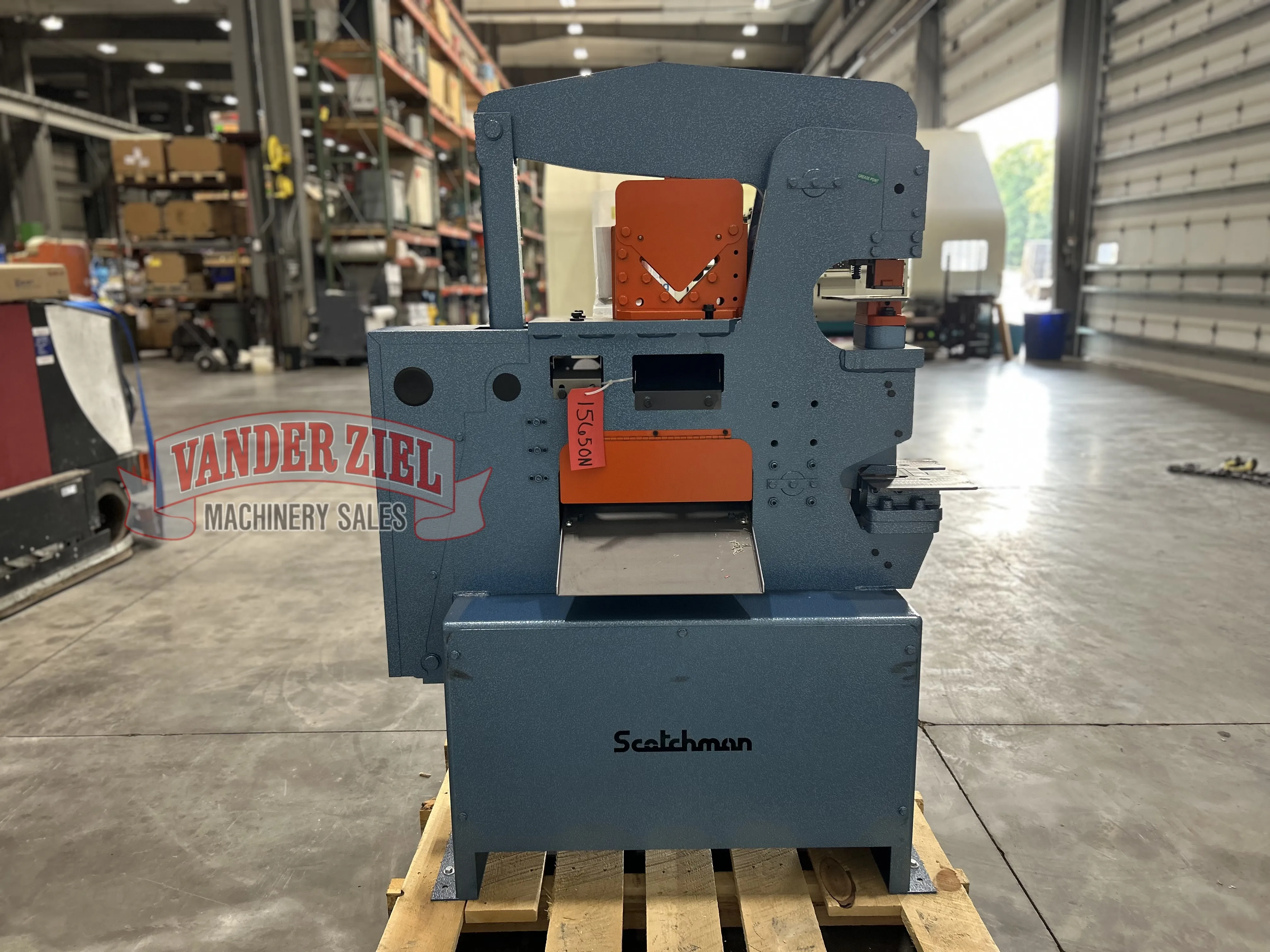

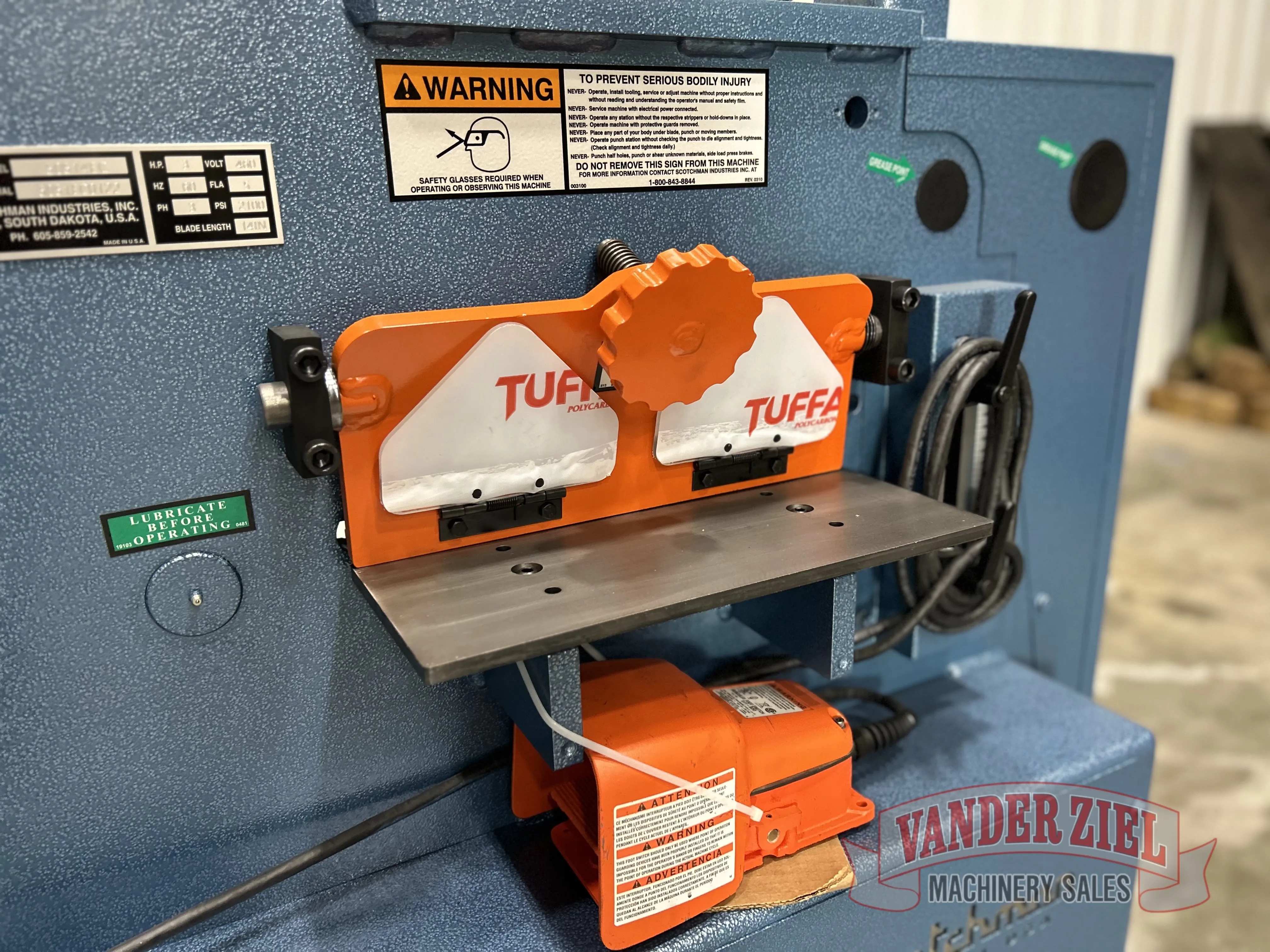

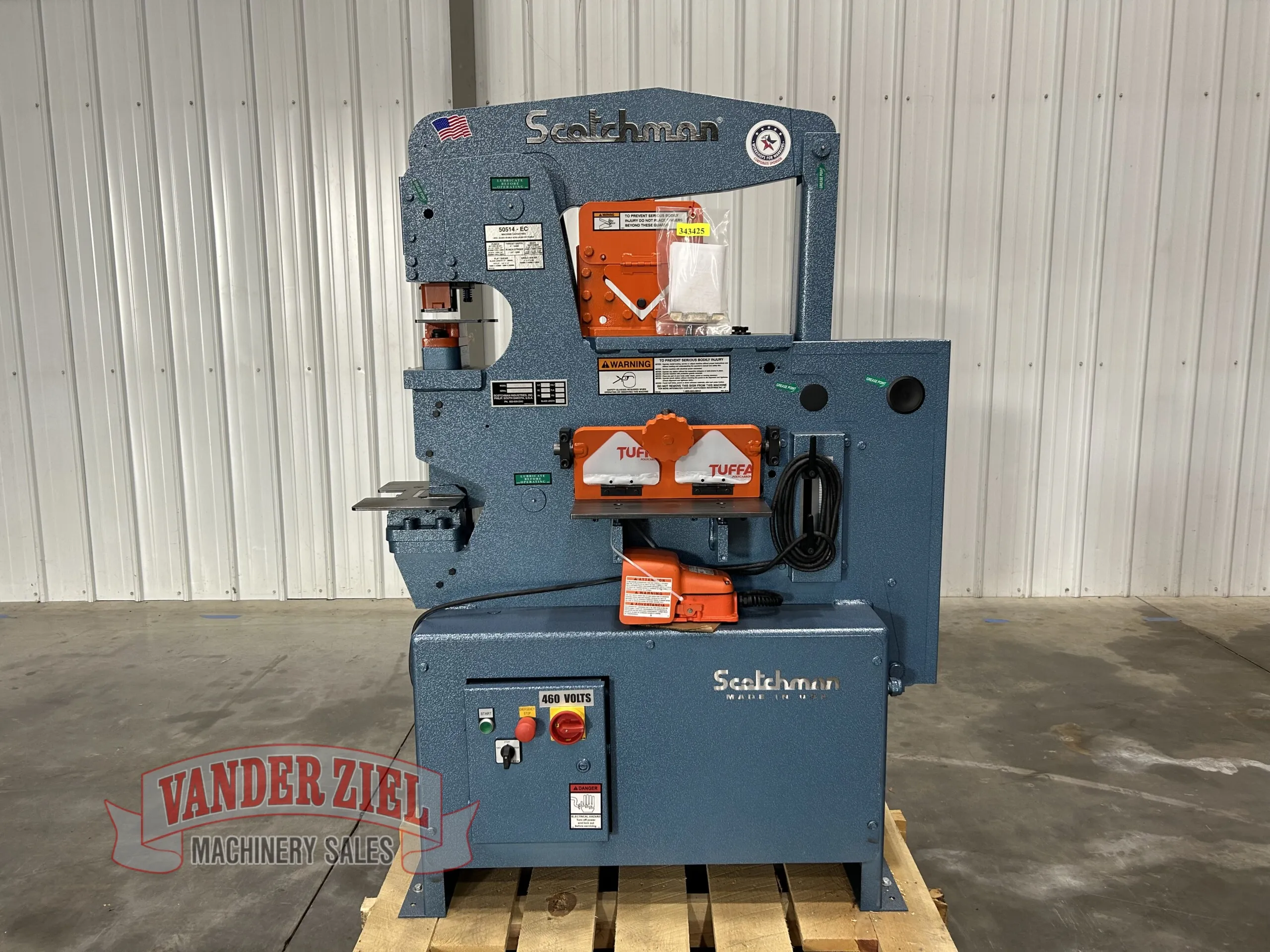

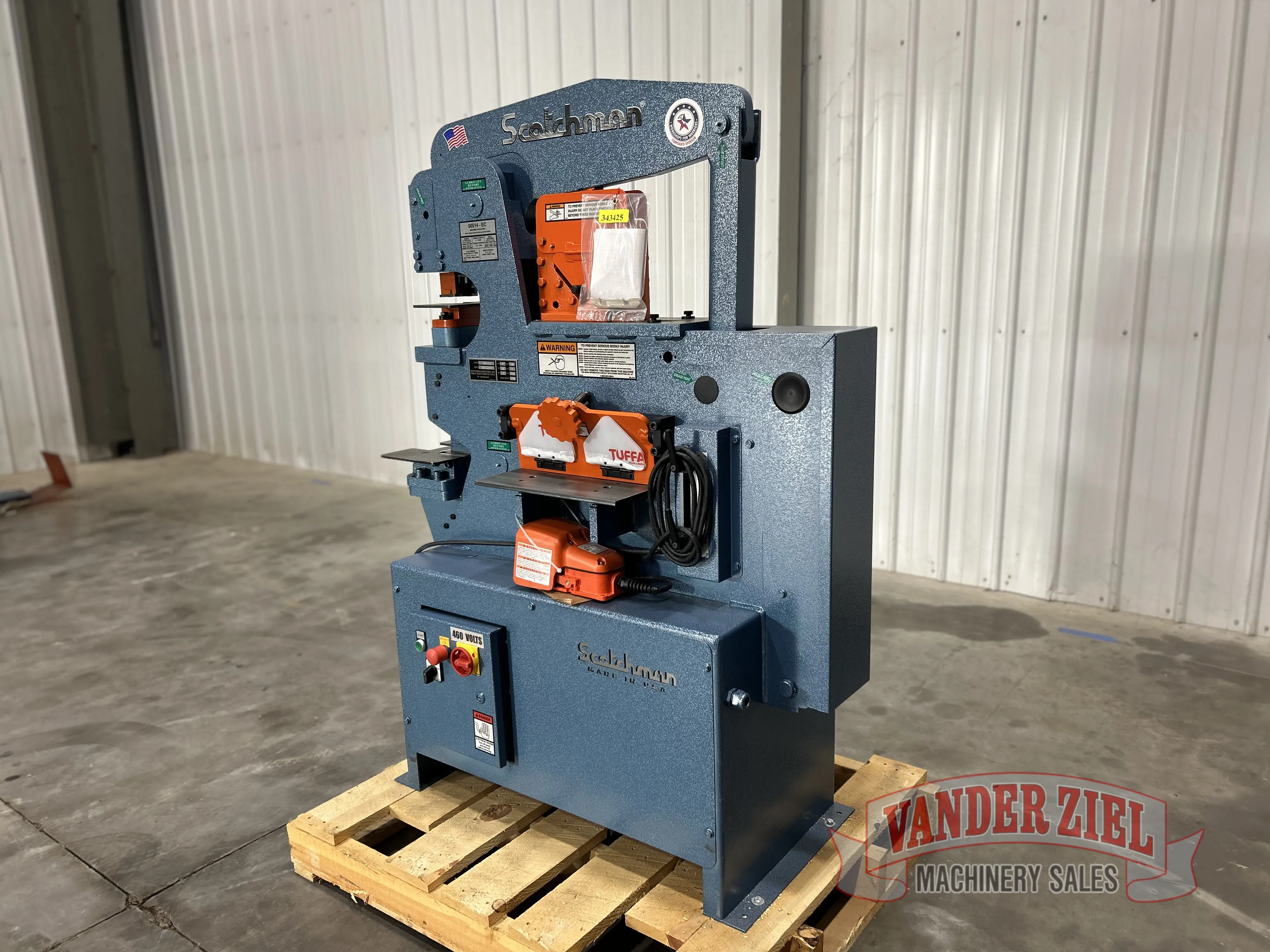

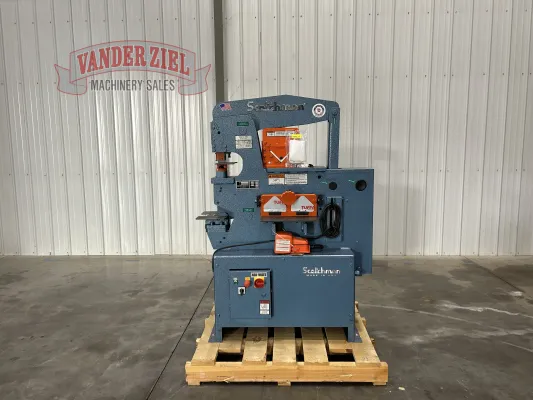

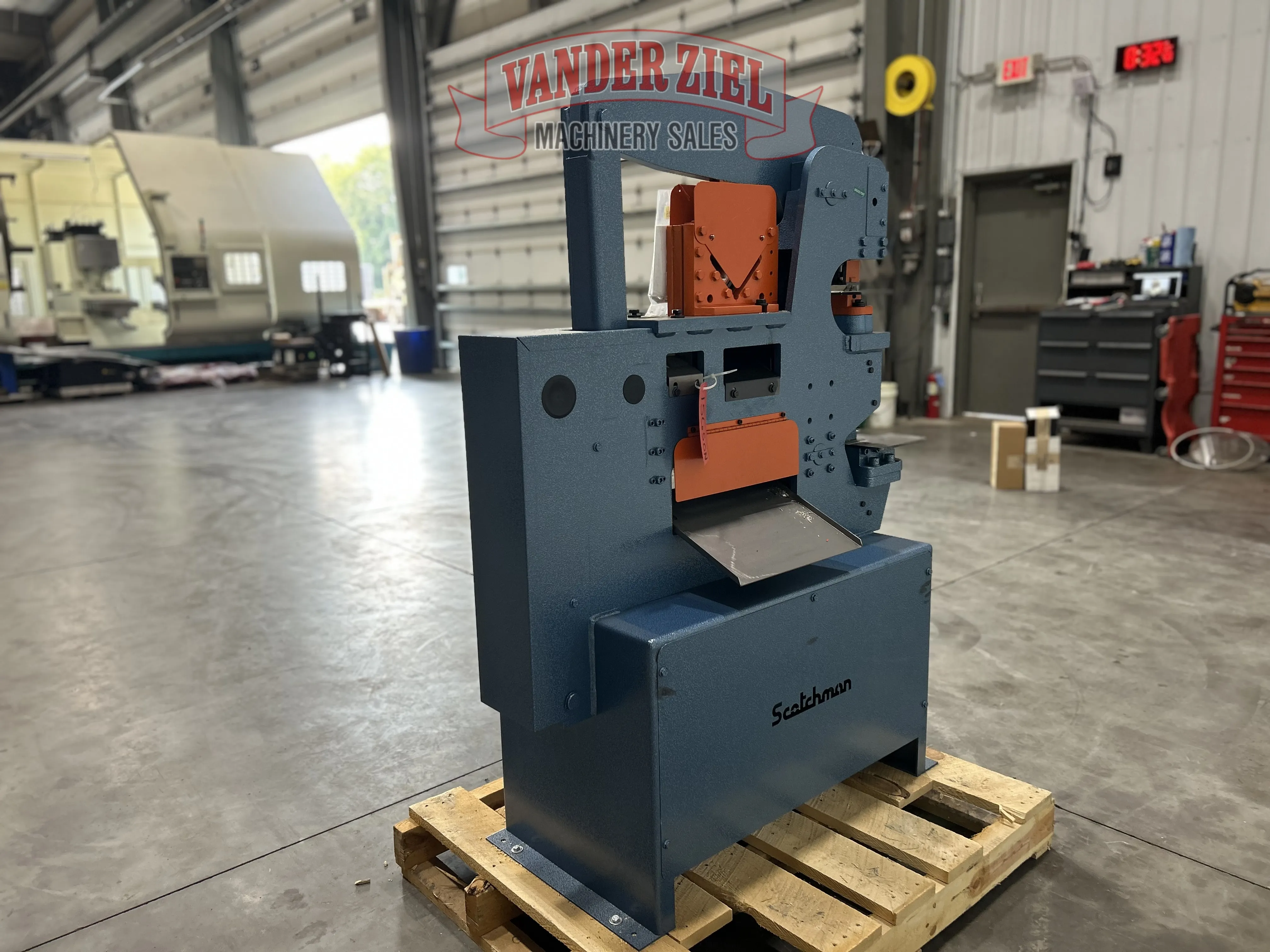

Scotchman 50 Ton Ironworker, Model 50514-EC with LED Lighting, 480 Volt / 3 Phase

Scotchman 50 Ton Ironworker, Model 50514-EC with LED Lighting, 480 Volt / 3 Phase
Serial #5051EC0122
Asset #15650
Specifications:
Rated on: 65,000 PSI Tensile

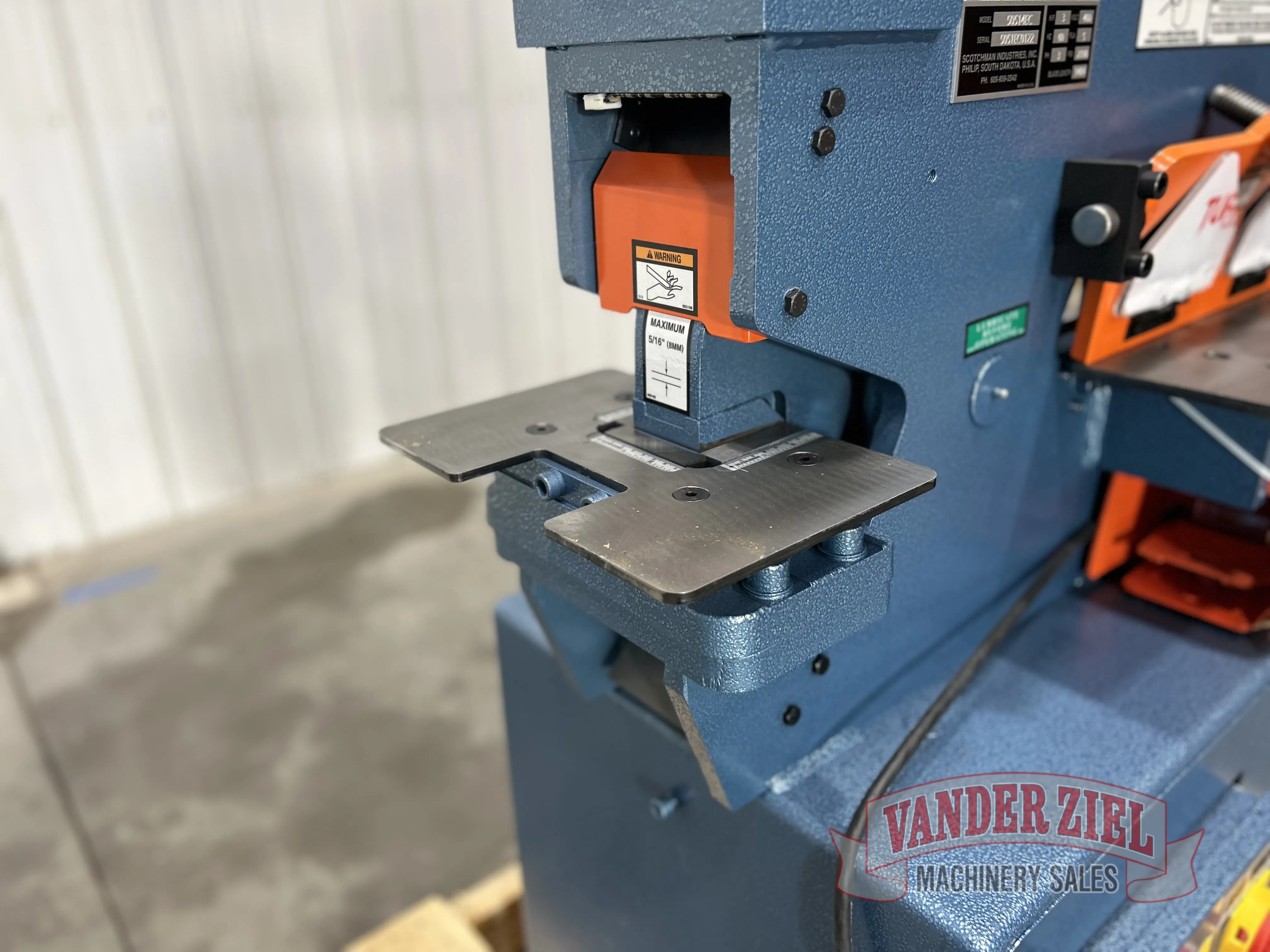

Punching Capacity 50 ton, 1-1/4" in 1/2", 13/16" in 3/4"
Special Tooling 2-1/4" Max. Dia.
Throat Depth 6"
Flat Bar Shear 14" Length, 3/4" x 4", 1/2" x 8", 3/8" x 10", 1/4" x 14"
Opt. Saber Blade 1/2" x 10", 3/8" x 12"

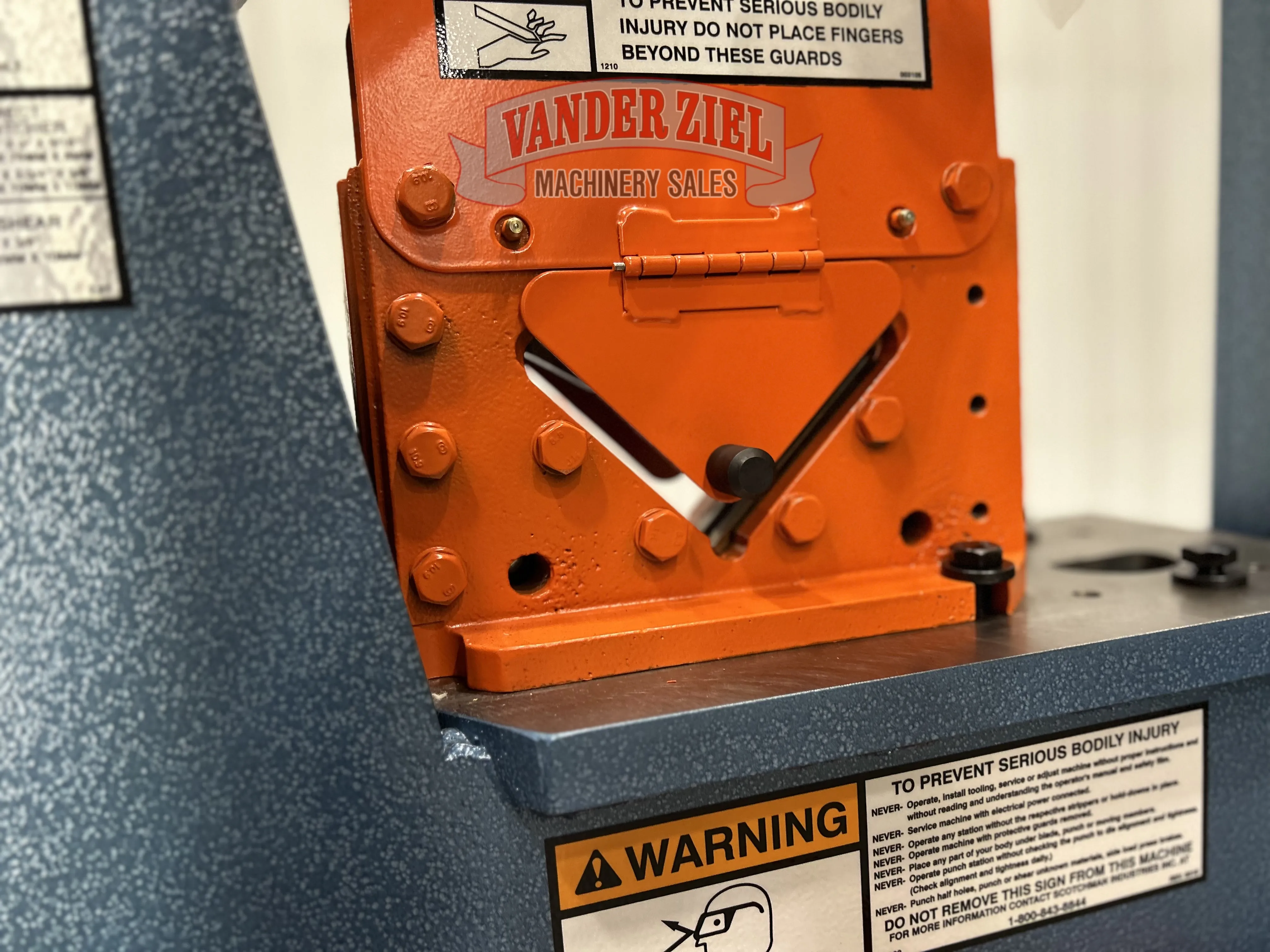

Angle Shear 90° 4" x 4" x 3/8"
Angle Shear 45° 2" x 2" x 3/8"
Brake 8" 30 ton
Brake 12" 25 ton
Open End Brake Max. 1/4" x 3" Flat or Angle Iron
Pipe Notcher 3/4", 1"
Schedule 40 I.D. 1-1/4", 1-1/2", 2"
Rectangle Notcher 2-1/2" x 3" x 5/16", 2-1/2" x 2-3/4" X 3/8"
90° V. Notcher 6" x 6" x 1/8", 3" x 3" X 1/4"
Strut Shear Samples Required
Round Rod (Max.) 1/4" to 1", 5 Cavity, 7/16", 9/16", 5/8", 3/4", 1"
Square Rod (Max.) 1/4" to 3/4", 1 Cavity, 3/4"
Square Tube Shear 1/2" to 1", 12 GA.
Picket Tool 1/2", 3/4", 1", 16 Gauge
Strokes Per Minute in Light Material 1/4" stroke [Punch Station]
Strokes Per Minute in Heavy Material 3/4" stroke [Punch Station]
Hydraulics 2350 psi
Motors Standard 3 HP, 3 PH, 230/460 Volts
Dimensions W-29" x L-47" x H-59"
Shipping Weight 1,515 lbs.
Ironworker is equipped with PN 090512 - LED Light Package
Preliminary Specifications - Subject to Verification
Similar Machines
Browse All Equipment Listings

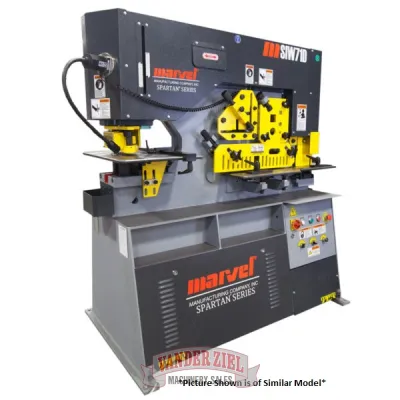

Marvel Spartan 60 Ton Ironworker, Model MSIW60D - NEW

Scotchman 50 Ton Turret Ironworker, Model 5014-ET - NEW

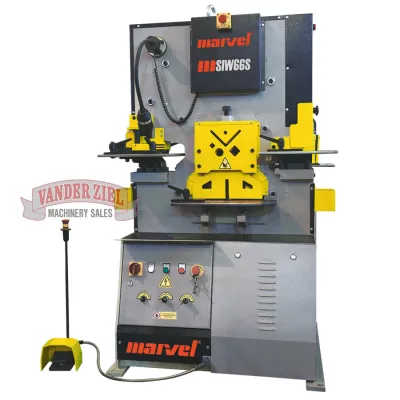

Marvel Spartan 66 Ton Ironworker, Model MSIW66S - NEW
